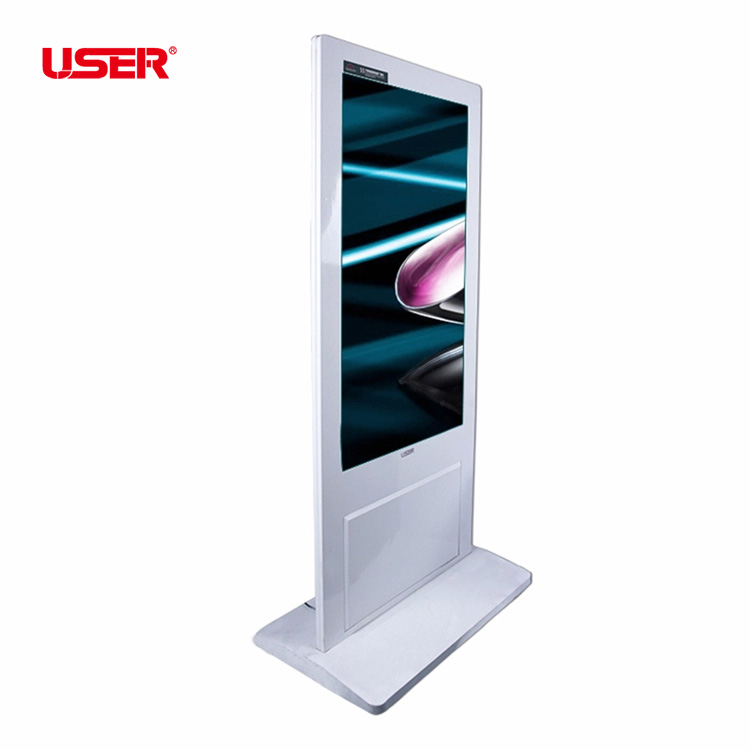

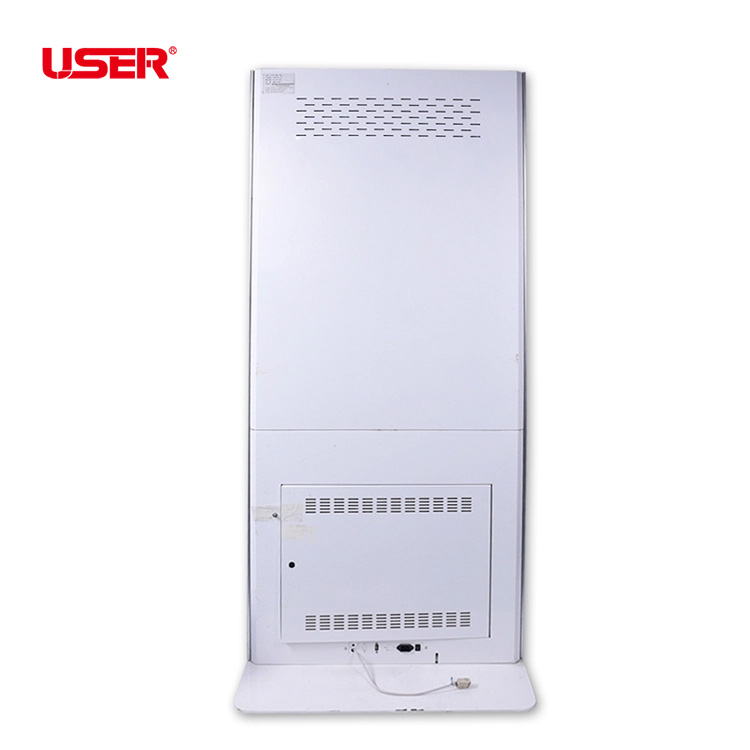

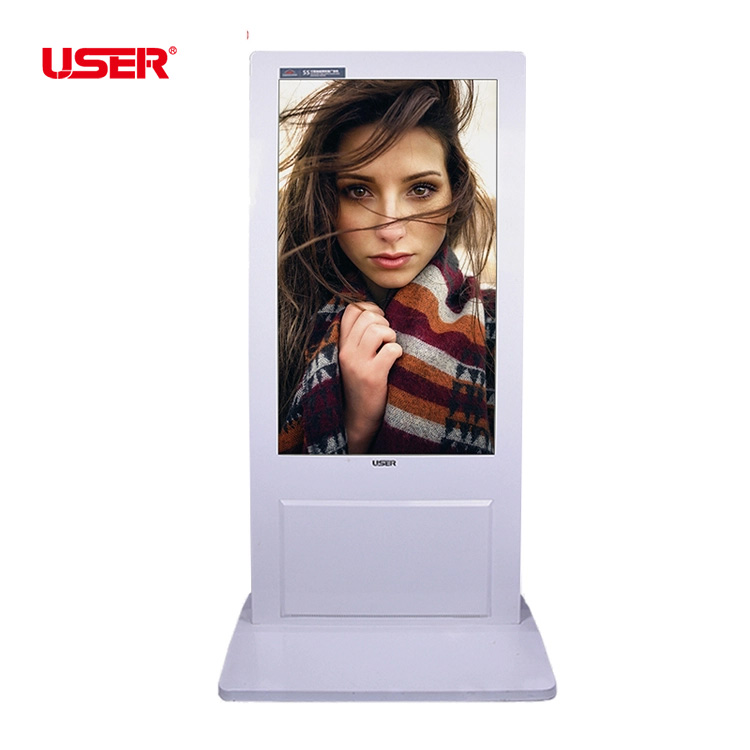

55” ultra thin bezel floor standing advertising player
What is User floor standing digital signage?
USER ultra thin bezel floor standing advertising player is an electronic signage to transfer and announce visual advertisements in the store or commuters on street. Display system utilized in this signage uses LCD, LED or projection screen for showing both images and videos. Moreover about the application of advertising player, it can be mentioned that it can be used in many places such waiting rooms, building entrances, stores, education centers, cinema, hospital and many other countless places. According to business requirement, digital signage can be customized to be prepared for specific purposes. Following we’ll discuss them.
56″ Floor Standing digital advertising player Usages
Education
at schools, colleges and universities
Catalogue
at exhibitions and company offices
Check-in
At schools, colleges and universities
Order
Items in store or restaurant meals
Schedule
At schools, colleges and universities
Purchase Tickets
for public transportation, cinema and etc.
Floor standing
If you don’t have enough space in your location or a wall to mount your signage on, surely this is the best possible solution for your condition. Moreover some of our floor stands have magazine holder. In this way you can purchase two in one. Floor standing multimedia kiosk are available only in big screen sizes from 56″ to 68″
Wall mount
Wall mount digital signage is another type of our various products among digital signage devices that has attracted customer’s attention. The interesting thing is that it is available in modern original black frame and classic wooden frame.
Stretched bar
This innovative signage which looks fantasy is quite suitable for your wide images and videos. You might worry about picture resolution in different angles, User ensures you about it, because all of our products use wide-view angle technology.
Shop window
Shop-window digital player is specifically designed for spacious shopping centers where advertisement should be visible and bright enough even for audiences who are standing meters away.
Get Product Quotation ONLINE!
Above all, here we explore some of the features of 55″ultra thin bezel floor standing advertising player:
✓ High-quality LCD Screen
User provides the device with a high-quality screen which utilizes explosion-proof glass. To explore the details, the screen is anti-violent, scratch-resistant, dust-proof and waterproof that helps you maintain in better. Besides, Industrial high-performance LCD screen ensures high image clarity, high brightness and stability of use. It can also be upgrade from 1080P to 2K or 4K .Different screen sizes are available from 28 inches to 49.5
✓ Operating system (OS):
User floor standing digital advertising player comes with customized operating system that will put your hands to choose your preferred OS among Windows, Android, Linux or even standalone OS . In this way, you will supply pleasant user experience for your customers based on their interest.
✓ Storage
Due to increasing size of high-quality media files, User supplies it with high-capacity via internal and external storage. In addition to internal storage varying from 512MB to 2GB, an external storage could be inserted via USB, HDD and SSD. In this way, you will never have any shortage.
✓ Screen Size
You should always choose an appropriate touch screen size considering your environment, device application, user experience. Luckily, USER Display Solution has designed digital advertising players in various model and sizes to provide your needs. Among all sizes the most common ones are 32, 43, 49 and 55 inches.
✓ Multiple Inputs
Powerful interface supporting a wide range of audio and video inputs like SD card and USB Flash and outputs such as HDMI/VGA/DVI/USB. The User manufacturer has considered fast dynamic picture without any delay or even frame loss to enhance the UX (user experience).
✓ Multiple Configuration
You can easily choose among basic level, middle level and top level. Different levels are various in processor from Dual-Core to Dual-Core. Its OS version is available Android 4.1 to Android 7.1 .Moreover we let you to choose your favorite OS between Android, Windows, Linux or standalone OS.
✓ Automatic Switch Machine
If you are a busy person who forgets to turn off your multimedia signage at night, this feature can save you from paying high-price electricity bill. Automatic switch machine will get an administrator schedule and act exactly based on your set time.
✓ 24/7 Usage
As one the important features of multimedia advertising signage is to be able to work continuously for long hours and days. User Company digital signage devices are built for 24/7 commercial use of uninterrupted work with the stable performance.
✓ Wide-Viewing Angle
Unlike a conventional display surface which it’s not possible to view the monitor at 178 degrees (side to side). User LCD display signage let you have this wide viewing angle keeping display brightness and contrast.
✓ Eco-Friendly Power Timer
The Eco-friendly power timer lets you assign hourly, daily or weekly on and off times for screen. By this feature, the power is consumed as it is needed. Moreover it is be really effective in energy consumption.
✓ IPS Commercial Grade Panel
IPS (In-plane switching) is a screen technology for LCD monitors. Firstly, this was designed to solve the unignorable limitations such as strong viewing angle dependence and low-quality color reproduction.
✓ Centralized Terminal Management
A cloud-based system that provides real-time control and insights of smart advertising signage, enabling operators to remotely manage content, display schedule and other functions.
✓ Signage Body
The covering shell of ultra-thin bezel floor standing digital signage is made up of high-strength steel, which is ultra-thin, beautiful and strong, and has excellent protection performance.
✓ Tempered Glass
A safety glass processed by controlled thermal or chemical treatments is attached to all display screen. The tempered glass is pretty increases the strength of the touch kiosk screen against minor and major scratches, hits and breaking damages.
✓ Lifetime Technical Support
This is also a crucial support department in User Company. Counting over twenty technician and engineers to help service any issues that might occur during the life cycle of your displays. Our current final failure rate is below 1.7%. We strive on a daily basis to keep lowering these statistics. Our weekly meetings between our after sales and QC teams truly help us achieve these hard set goals.
✓ 3 Years Warranty
User Company has 3 years of warranty for all the products in there will be a technical issue in your display systems. Usersdt Warranty covers the defects resulting from defective parts, materials or manufacturing. The device is considered defective if it fails to perform the functions as indicated in the operation manuals, technical specifications or any other similar documents supplied with the equipment, and the failure is due to internal device characteristics.
USRE Ultra Thin Bezel Floor Standing Advertising Player
Product model | US-AD***** | ||||
Screen
parameters |
Size | 43”-55” | Audio system | Horn | 2×5W(8Ω) |
Back type | Backlight integration | Sound mode | standard | ||
Display Proportion | 16:9 | Output Interface | PC output interface | RJ45 1、USB 2 | |
Physical resolution | 1920X1080 | L/R Audio output | 1 RCA X2 | ||
Color depth | 16.7M | Power consumption | Input voltage | C 100~240v 50/60HZ | |
Viewing angle | R/L/U/D 89/89/89/89 | Standby power / rated power | ≤3W/≤180W | ||
Brightness | 450 cd/㎡ | Cabinet | Material | SPCC | |
Contrast | 5000:1 | Exterior color | Black (default) gold silver | ||
Response time | 5ms | External conditions | Working temperature / humidity | 0℃~50℃/20%~80% | |
Service time | 60000 hours | Storage temperature / humidity | -10℃~60℃/5–95% |
Screen size Power
Screen size Power
|
18.5 inch | 21.5 inch | 27 inch | 32 inch | 43 inch | 49 inch | 55 inch | 65 inch | 75 inch | 86 inch | 98 inch |
Standalone version | 25W | 30W | 50W | 70W | 85W | 100W | 115W | 180W | 240W | 380W | 550W |
Android system | 25W | 30W | 50W | 70W | 85W | 100W | 115W | 180W | 240W | 380W | 550W |
Low power consumption
One machine series |
38W | 40W | 50W | 90W | 100W | 120W | 135W | 180W | 260W | 300W | 500W |
Desktop machine series | 95W | 98W | 110W | 150W | 170W | 190W | 220W | 250W | 330W | 390W | 600W |
Touch Panel
Touch Panel Options | Infrared Touch (IR Touch ) | Capacitive Touch | Nano Capacitive Touch |
Touch Points | 10 points touch | 10 points touch | 10 points touch |
Material | IR Tube | G+G | G+F |
Response Time | <8ms | <3ms | <5ms |
Touch Times | 50 million times | 50 million times | 50 million times |
Transmittance | 0.92 | 0.95 | 0.85 |
Control Processing Unit (CPU)
Version | CPU | Internal Storage | Out Storage | Interface | System supporting |
Display Version | E9-B11/ E9-BNC/E6J-AV | No storage | USB /HDD/SSD | HDMI/VGA/DVI/USB | Android /Windows/Linux OS |
Standalone Version | Mstar V56 | No storage
( 8G/16G available) |
support SD card and USB Flash | HDMI/USB/SD | Only Standalone OS |
Configuration
Configuration | CPU | Chip architecture | Processor | Maximum resolution support | System Version | Storage |
Basic level | A20 | Cortex-A7 | Dual-Core | 1080P | Android 4.1 | 512Mb +8G |
A33 | CortexTM-A7 | Quad-core | 1080P | Android 4.4 | 512Mb/1Gb +8G | |
A64 | Cortex-A53 | Quad-core | 1080P | Android 5.1 | 512Mb/1Gb +8G | |
Middle level | RK3128 | Cortex-A7 | Quad-Core | 1080P | Android 6.0 | 512Mb/1Gb +8G |
RK3368 | Coretex-A53 | Octa-Core | 2K/4K | Android 6.0 | 1Gb/2Gb +8G | |
RK3188 | Cortex A9 | Quad-Core | 2K | Android 6.0 | 1Gb/2Gb +8G | |
Top level | RK3288 | Cortex-A17 | Quad-Core | 4K | Android 6.0 | 2Gb +8G |
RK3399 | Cortex-A72 | Dual-core +Quad-core | 4K | Android 7.1 | 4Gb +16G | |
Amlogic T960X | Cortex-A53 | Quad-Core | 4K | Android 7.1 | 2Gb+8G |
Operating System (OS)
Operating System | CPU | System Version | Graphics | RAM | Storage |
Windows OS | Core-i3 | Win 7/ Win 10 | 3.7HZ/3.9HZ | 4G (8G available ) | 120G SSD/500G HDD |
Core-i5 | Win 7/ Win 10 | 3.2HZ/3.4HZ | 4G (8G available ) | 120G SSD/500G HDD | |
Core-i7 | Win 7/ Win 10 | 3.4HZ/3.6HZ | 4G (8G available ) | 120G SSD/500G HDD |
