What is User Digital Signage?
Digital signage is an electronic sign used to transfer and announce visual information to customers in the store or commuters on street. Display system utilized in this signage uses LCD, LED or projection screen for showing both images and videos. Moreover about the application of digital signage, it can be mentioned that it can be used in many places such waiting rooms, building entrances, stores, education centers, cinema, hospital and many other countless places.
According to business requirement, digital signage can be customized to be prepared for specific purposes. Following we’ll discuss them.
– Floor standing:
If you don’t have enough space in your location or a wall to mount your signage on, surely this is the best possible solution for your condition. Moreover some of our floor stands have magazine holder. So you can purchase two in one.
– Wall mount:
Wall mount digital signage is another type of our various products among digital signage devices that has attracted customer’s attention. The interesting thing is that it is available in modern original black frame and classic wooden frame.
– Stretched bar digital signage:
This innovative signage which looks fantasy is quite suitable for your wide images and videos. You might worry about picture resolution in different angles, User ensures you about it, because all of our products use wide-view angle technology.
– Shop-window:
Shop-window digital signage is specifically designed for spacious shopping centers where advertisement should be visible and bright enough even for audiences who are standing meters away.
– K-stand touchscreen:
With this type of interactive digital signage, your customer don’t have to just watch the screen. They would be engaged to interact via touchscreens or smartphones. In this way they can explore among various items, choose them and enter any information.
Above all, here we explore some of the features of Floor standing magazine holder digital signage:
High-quality LCD Screen
User provides the device with a high-quality screen which utilizes explosion-proof glass. To explore the details, the screen is anti-violent, scratch-resistant, dust-proof and waterproof that helps you maintain in better. Besides, Industrial high-performance LCD screen ensures high image clarity, high brightness and stability of use. It can also be upgrade from 1080P to 2K or 4K .Different screen sizes are available from 28 inches to 49.5
Operating system (OS):
User Company floor standing magazine holder digital signage comes with customized operating system that will put your hands to choose your preferred OS among Windows, Android, Linux or even standalone OS . In this way, you will supply pleasant user experience for your customers based on their interest.
Storage
Due to increasing size of high-quality media files, User supplies it with high-capacity via internal and external storage. In addition to internal storage varying from 512MB to 2GB, an external storage could be inserted via USB, HDD and SSD. In this way, you will never have any shortage.
Multiple Inputs
Powerful interface supporting a wide range of audio and video inputs like SD card and USB Flash and outputs such as HDMI/VGA/DVI/USB.
Multiple Configuration
You can easily choose among basic level, middle level and top level. Different levels are various in processor from Dual-Core to Dual-Core. Its OS version is available Android 4.1 to Android 7.1 .Moreover we let you to choose your favorite OS between Android, Windows, Linux or standalone OS.
Signage Body
The covering shell of floor-standing signage is made up of high-strength steel, which is ultra-thin, beautiful and strong, and has excellent protection performance.
Automatic Switch Machine
If you are a busy person who forgets to turn off your digital signage at night, this feature can save you from paying high-price electricity bill. Automatic switch machine will get an administrator schedule and act exactly based on your set time.
24/7 Usage
As one the important features of floor stand digital signage is to be able to work continuously for long hours and days. User Company digital signage devices are built for 24/7 commercial use of uninterrupted work with the stable performance.
Wide-Viewing Angle
Unlike a conventional display surface which it’s not possible to view the monitor at 178 degrees (side to side). User LCD video walls let you have this wide viewing angle keeping display brightness and contrast.
Eco-Friendly Power Timer
The Eco-friendly power timer lets you assign hourly, daily or weekly on and off times for screen. By this feature, the power is consumed as it is needed. Moreover it is be really effective in energy consumption.
IPS Commercial Grade Panel
IPS (In-plane switching) is a screen technology for LCD monitors. Firstly, this was designed to solve the unignorable limitations such as strong viewing angle dependence and low-quality color reproduction.
Lifetime Technical Support
This is also a crucial support department in User Company. Counting over twenty technician and engineers to help service any issues that might occur during the life cycle of your displays. Our current final failure rate is below 1.7%. We strive on a daily basis to keep lowering these statistics. Our weekly meetings between our after sales and QC teams truly help us achieve these hard set goals.
3 Years Warranty
User Company has 3 years of warranty for all the products in there will be a technical issue in your display systems. Usersdt Warranty covers the defects resulting from defective parts, materials or manufacturing.The device is considered defective if it fails to perform the functions as indicated in the operation manuals, technical specifications or any other similar documents supplied with the equipment, and the failure is due to internal device characteristics.

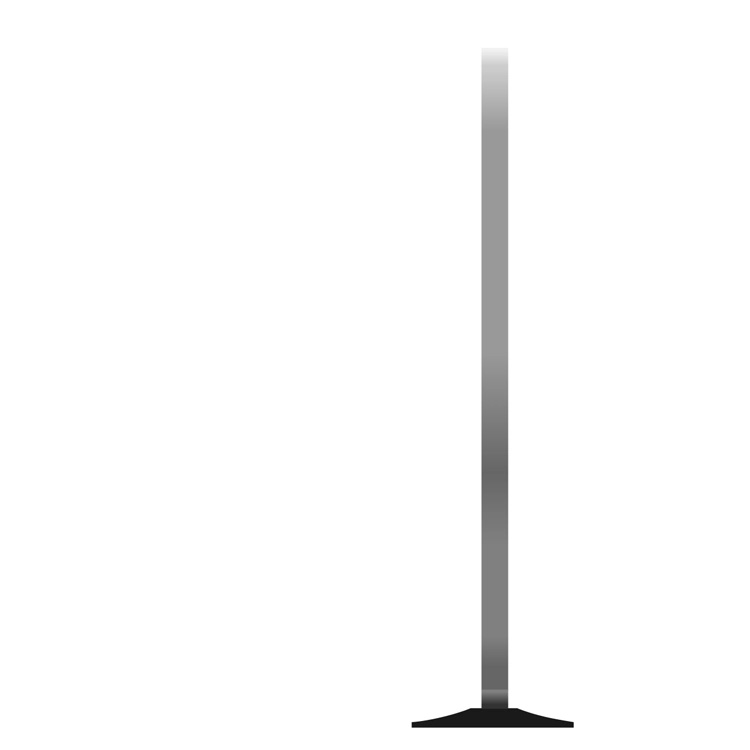

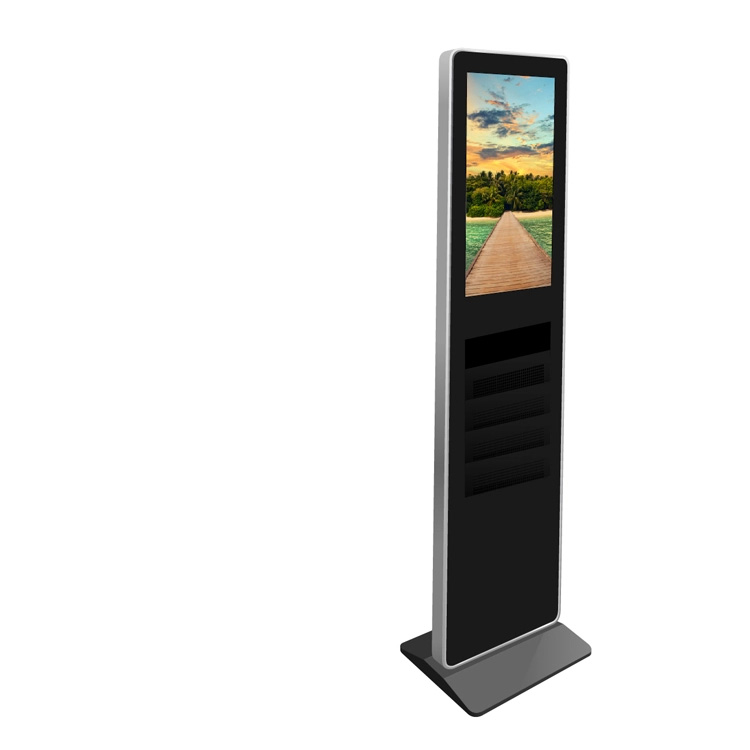

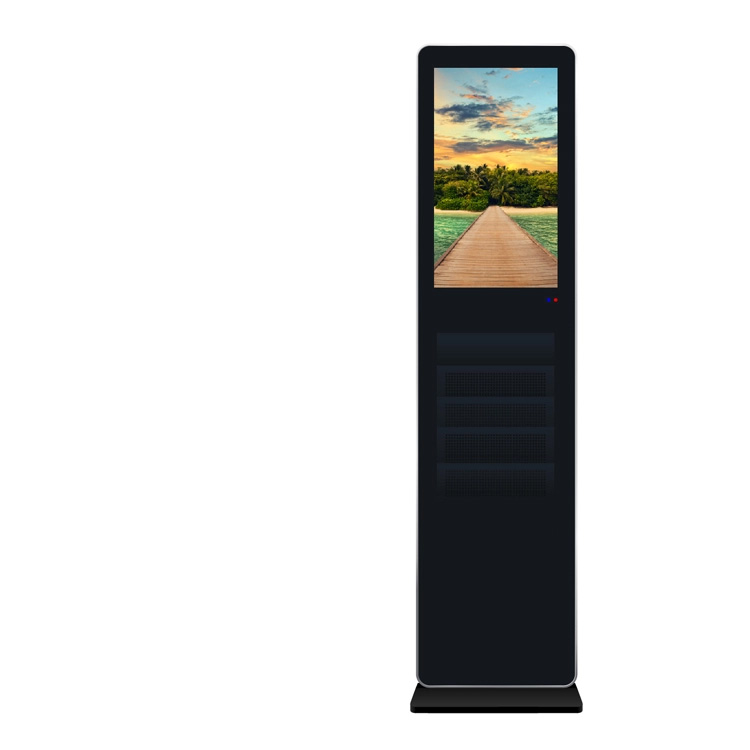

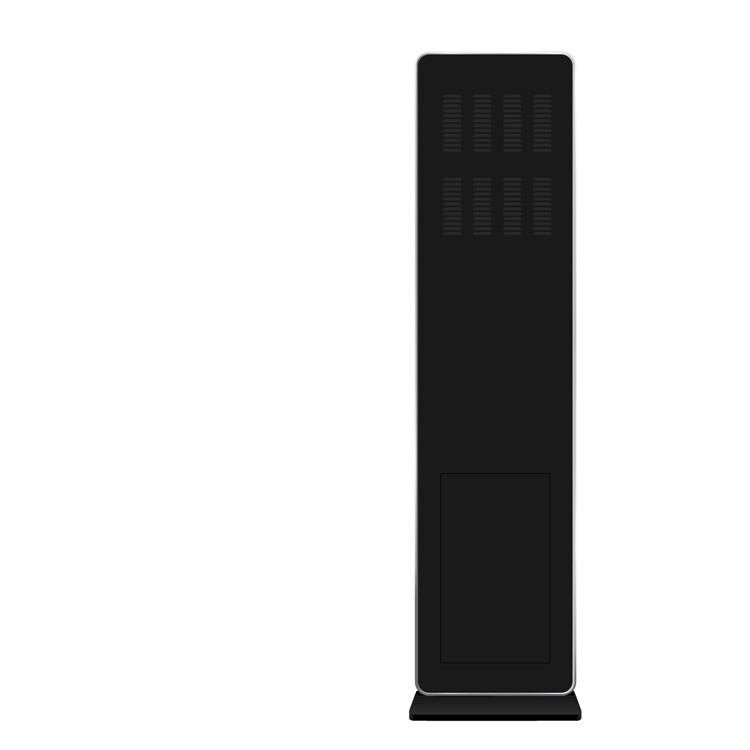

User Floor standing magazine holder digital signage
Product model | US-AD***** | ||||
Screen
parameters |
Size | 32”- 86” | Audio system | Horn | 2×5W(8Ω) |
Back type | Backlight integration | Sound mode | standard | ||
Display Proportion | 16:9 | Output Interface | PC output interface | RJ45 1、USB 2 | |
Physical resolution | 1920X1080 | L/R Audio output | 1 RCA X2 | ||
Color depth | 16.7M | Power consumption | Input voltage | C 100~240v 50/60HZ | |
Viewing angle | R/L/U/D 89/89/89/89 | Standby power / rated power | ≤3W/≤180W | ||
Brightness | 450 cd/㎡ | Cabinet | Material | SPCC | |
Contrast | 5000:1 | Exterior color | Black (default) gold silver | ||
Response time | 5ms | External conditions | Working temperature / humidity | 0℃~50℃/20%~80% | |
Service time | 60000 hours | Storage temperature / humidity | -10℃~60℃/5–95% |
Screen Size Power
Screen size Power
|
32 inch | 43 inch | 49 inch | 55 inch | 65 inch | 75 inch | 86 inch |
Standalone version | 70W | 85W | 100W | 115W | 180W | 240W | 380W |
Android system | 70W | 85W | 100W | 115W | 180W | 240W | 380W |
Low power consumption
One machine series |
90W | 100W | 120W | 135W | 180W | 260W | 300W |
Desktop machine series | 150W | 170W | 190W | 220W | 250W | 330W | 390W |
Touch Panel
Touch Panel Options | Infrared Touch (IR Touch ) | Capacitive Touch | Nano Capacitive Touch |
Touch Points | 10 points touch | 10 points touch | 10 points touch |
Material | IR Tube | G+G | G+F |
Response Time | <8ms | <3ms | <5ms |
Touch Times | 50 million times | 50 million times | 50 million times |
Transmittance | 0.92 | 0.95 | 0.85 |
Control Processing Unit (CPU)
Version | CPU | Internal Storage | Out Storage | Interface | System supporting |
Display Version | E9-B11/ E9-BNC/E6J-AV | No storage | USB /HDD/SSD | HDMI/VGA/DVI/USB | Android /Windows/Linux OS |
Standalone Version | Mstar V56 | No storage
( 8G/16G available) |
support SD card and USB Flash | HDMI/USB/SD | Only Standalone OS |
Operating System (OS)
Operating System | CPU | System Version | Graphics | RAM | Storage |
Windows OS | Core-i3 | Win 7/ Win 10 | 3.7HZ/3.9HZ | 4G (8G available ) | 120G SSD/500G HDD |
Core-i5 | Win 7/ Win 10 | 3.2HZ/3.4HZ | 4G (8G available ) | 120G SSD/500G HDD | |
Core-i7 | Win 7/ Win 10 | 3.4HZ/3.6HZ | 4G (8G available ) | 120G SSD/500G HDD |
Configuration
Configuration | CPU | Chip architecture | Processor | Maximum resolution support | System Version | Storage |
Basic level | A20 | Cortex-A7 | Dual-Core | 1080P | Android 4.1 | 512Mb +8G |
A33 | CortexTM-A7 | Quad-core | 1080P | Android 4.4 | 512Mb/1Gb +8G | |
A64 | Cortex-A53 | Quad-core | 1080P | Android 5.1 | 512Mb/1Gb +8G | |
Middle level | RK3128 | Cortex-A7 | Quad-Core | 1080P | Android 6.0 | 512Mb/1Gb +8G |
RK3368 | Coretex-A53 | Octa-Core | 2K/4K | Android 6.0 | 1Gb/2Gb +8G | |
RK3188 | Cortex A9 | Quad-Core | 2K | Android 6.0 | 1Gb/2Gb +8G | |
Top level | RK3288 | Cortex-A17 | Quad-Core | 4K | Android 6.0 | 2Gb +8G |
RK3399 | Cortex-A72 | Dual-core +Quad-core | 4K | Android 7.1 | 4Gb +16G | |
Amlogic T960X | Cortex-A53 | Quad-Core | 4K | Android 7.1 | 2Gb+8G |
