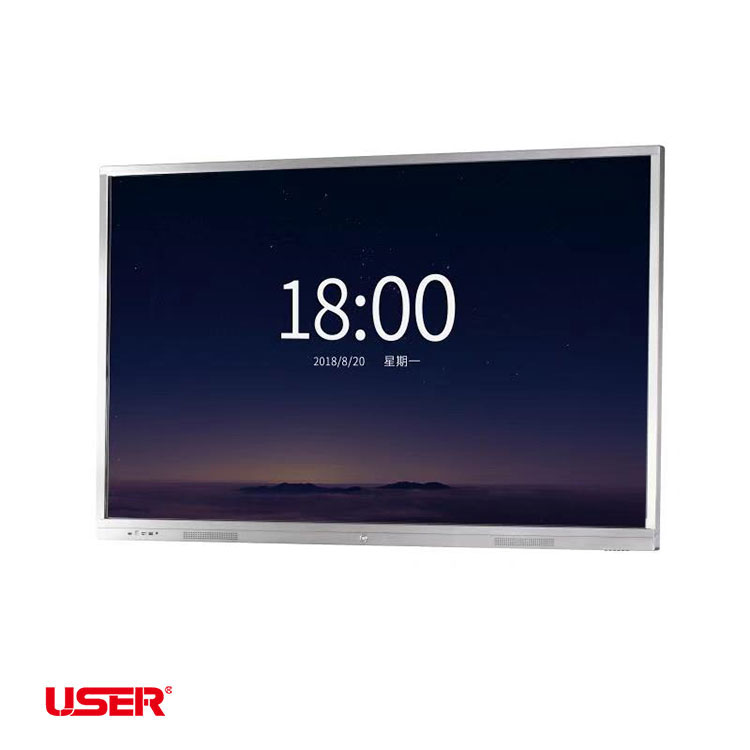

What is User Smart Whiteboard?
Smart Whiteboard that is also known as interactive board or smart board made great revolution in old ones that was commonly used. High rate of “interaction” has influenced even many small business owner to get their environments with the interactive boards. Touch smart whiteboards are commonly used in many locations where presentation is done such as educational centers and conference rooms.
You shouldn’t worry about location of your interactive whiteboards , USER provides it with different installation
methods: Hanging, Wall-mounted, Floor-standing, Movable
If you don’t have enough knowledge about LCD and LED display technologies, “Difference between LED and LCD in video wall” is surely a useful guide. Above all, here we explore some of the most considerable features of “Smart Whiteboard“:

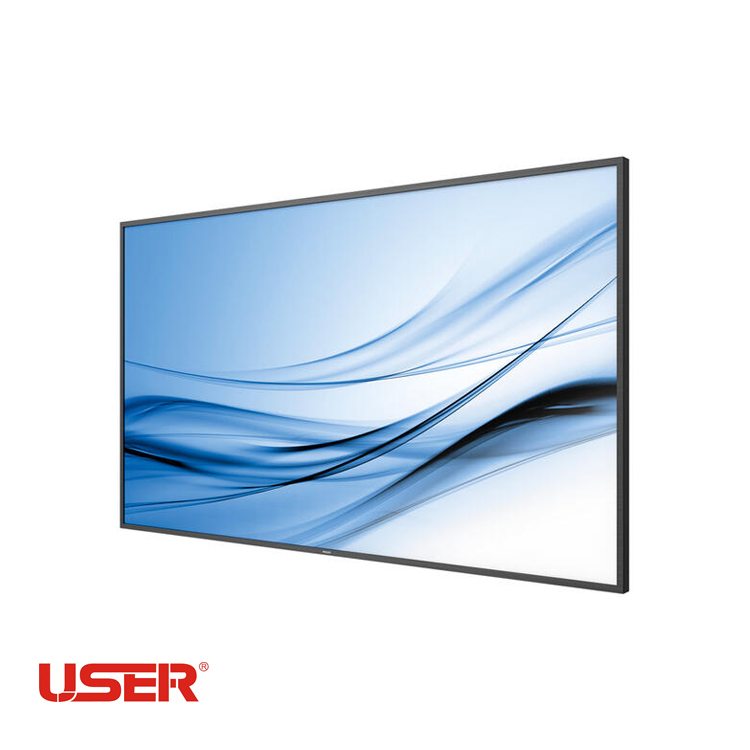

✓ Bezel Free
Width of bezel in interactive smart whiteboard model is one of the most considered criterion in its structure which should be as thin as possible. Otherwise it would make an unpleasant visual experience for you. USER modern smart interactive whiteboard are bezel free. That’s why you have superb quality images proper for different business environment.
✓ Operating system (OS):
Our bezel free smart whiteboard series come with customized operating system that will put your hands to choose your preferred OS among Windows, Android or even standalone OS . In this way, you will supply pleasant user experience for your customers based on their interest.
✓ Wireless Connection
In this generation of smart board, visual data is not only transferred by cables. This can be done via a wireless connection with different devices. This function helps presenter move freely on the stage and doesn’t have to stand by laptop or PC.
✓ Various Display Sizes
Choosing propriate board screen sizes based on your environment size is a signification factor in purchasing intelligent whiteboard. We have considered this issue in our manufacturing. There is no limit for you. We provide screens in different sizes to maximum 203 inches.
✓ Multiple Configuration
You can easily choose among basic level, middle level and top level. Different levels are various in processor from Dual-Core to Dual-Core. Its OS version is available Android 4.1 to Android 7.1 .Moreover we let you to choose your favorite OS between Android, Windows, Linux or standalone OS.
✓ Lifetime Technical Support
This is also a crucial support department in User Company. Counting over twenty technician and engineers to help service any issues that might occur during the life cycle of your displays. Our current final failure rate is below 1.7%. We strive on a daily basis to keep lowering these statistics. Our weekly meetings between our after sales and QC teams truly help us achieve these hard set goals.
✓ 24/7 Usage
As one the important features of bezel less LED interactive displays is to be able to work continuously for long hours and days. User Company intelligent whiteboard devices are built for 24/7 commercial use of uninterrupted work with the stable performance.
✓ Built-in mosaic controller
Built-in mosaic controller which is located on display panel, runs complicated shows quite precisely. In fact , it supports DMX512 and DMX-Over-Ethernet protocols to LED fixtures, conventional dimmable fixtures and automated lights. Mosaic Show Controllers also called MSC , offer up to 2048 channels of control from a single controller. Above all, to read more click here .
✓ Easy Operation
LED interactive board comes with a simple remote controller as an accessory. Few buttons of controller has made its operation much more convenient and easier.
✓ Eco-Friendly Power Timer
The Eco-friendly power timer lets you assign hourly, daily or weekly on and off times for screen. By this feature, the power is consumed as it is needed. Moreover it is be really effective in energy consumption.
✓ Wide-Viewing Angle
Unlike a conventional display surface which it’s not possible to view the monitor at 178 degrees (side to side). User interactive smart whiteboards let you have this wide viewing angle keeping display brightness and contrast.
✓ 3D Processing Kernel
3-Dimensional digital image processing kernel equipped in LED interactive whiteboards are for precise monitoring of more details.
✓ IPS Commercial Grade Panel
IPS (In-plane switching) is a screen technology for LED monitors. This was designed to solve the unignorable limitations such as strong viewing angle dependence and low-quality color reproduction.
✓ LED backlight
Presence of LED blacklight brings an enhanced brightness and contrast in addition to reducing power consumption. Unlike other forms of light this technology is mercury free, making it even more Eco-friendly.
✓ 3 Years Warranty
User Company has 3 years of warranty for all the products in there will be a technical issue in your display systems. Usersdt Warranty covers the defects resulting from defective parts, materials or manufacturing. The device is considered defective if it fails to perform the functions as indicated in the operation manuals, technical specifications or any other similar documents supplied with the equipment, and the failure is due to internal device characteristics.
Model No | HD980C | HD840C | HD750C | HD650C | HD600C | HD490C | HD430C | |||||||||
Size | 98 inch | 84 inch | 75 inch | 65 inch | 60inch | 49 inch | 43 inch | |||||||||
Resolution | 3840*2160 1920*1080 | |||||||||||||||
Display Color | 16.7M | |||||||||||||||
Brightness | 500cd | 350cd | 300cd | 350cd | 450cd | 350cd | 350cd | |||||||||
Pixel Pitch | 0.63mm*0.63mm | 0.63mm*0.63mm | 0.4296mm*0.4296mm | |||||||||||||
Contrast | 5000:1 | |||||||||||||||
Visual Angle | 178°/178°/178°/178° | |||||||||||||||
Response Time | 8ms | |||||||||||||||
Touch Type | 10 point infrared | |||||||||||||||
LAN | RJ45 | |||||||||||||||
Support | WiFi, Bluetooth,Infrared | |||||||||||||||
Remote Control | Infrared 7 Key | |||||||||||||||
Power Supply | AC100V-240V 50/60Hz | |||||||||||||||
Video Input | ||||||||||||||||
HDMI | 4 channel HDMI | |||||||||||||||
USB Interface | 2 channel USB3.0 1 channel USB2.0 | |||||||||||||||
VGA | 1 channel DB15 1 channel external | |||||||||||||||
AV | 1 channel AV | |||||||||||||||
YPbPr | 1 channel YPbPr | |||||||||||||||
CVBS | 1 channel CVBS | |||||||||||||||
Video Output | ||||||||||||||||
DP | 1 channel DP(optional) | |||||||||||||||
HDMI | 1 channel HDMI(optional) | |||||||||||||||
SPDIF | 1 channel SPDIF | |||||||||||||||
AV | 1 channel AV | |||||||||||||||
Front Interface | ||||||||||||||||
HDMI | 1 channel HDMI | |||||||||||||||
PC-USB3.0 | 1 channel PC-USB3.0 | |||||||||||||||
TV-USB2.0 | 1 channel TV-USB2.0 | |||||||||||||||
Earphone | 1 channel earphone | |||||||||||||||
8 key | ECO POWER NPUT MENU CH- CH+ VOL- VOL+ | |||||||||||||||

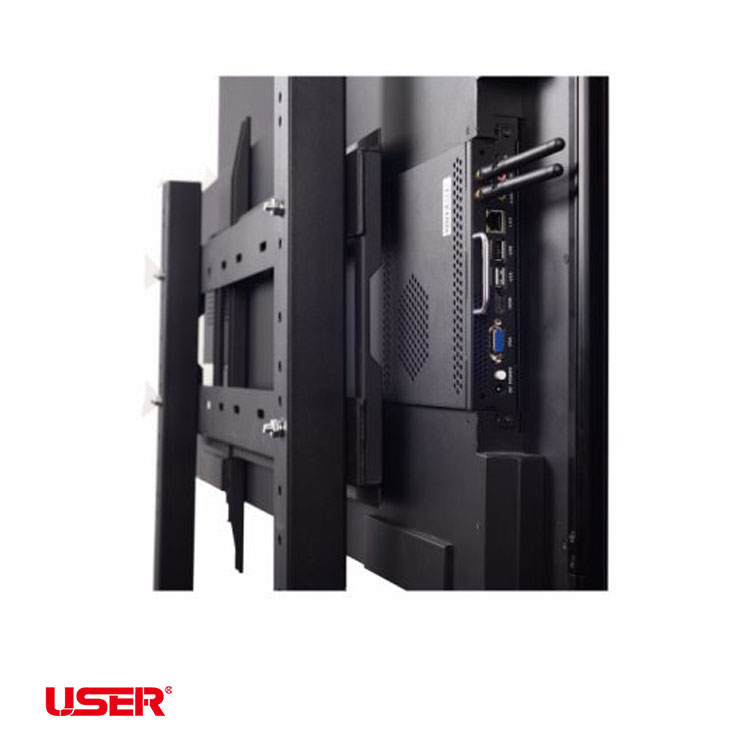

PC System Configuration (customized available) | ||||||||||||||||
CPU | I3 processor | |||||||||||||||
RAM | 4G | |||||||||||||||
Hard Disk Drive | 500G/SATA 7200rpm(optional) | |||||||||||||||
Network Card | Build in Gbps network card | |||||||||||||||
Sound Card | High quality multi-sound track audio chip | |||||||||||||||
USB | 4 channel USB2.0 2 channel USB3.0 | |||||||||||||||
I/O | HDMI+VGA+S/PDIF | |||||||||||||||
Power | DC 19V 5A |
system:
Windows System | CPU: | Intel I3 Dual core |
RAM: | 4GB | |
HDD: | 500GB | |
Network card: | Onboard Gigabit Ethernet(RJ45) | |
Sound card: | Integrated high-quality multi-channel audio chip | |
USB: | USB 2.0*4 USB 3.0*2 | |
I/O: | HDMI+VGA+S/PDIF | |
extensible: | WIFI/Infrared/Bluetooth |
