High definition picture perfect quality, Safety glass protects the LCD for public use, High-fidelity quanlity sound, Easy 178 degrees viewing angles
Infreared-&-Capactive-Touch-Systems

Infreared-&-Capactive-Touch-Systems

Windows-Ready

Windows-Ready

Android-Ready

Android-Ready

Terminal-Managment

Terminal-Managment

Landscape-&-Portrait

Landscape-&-Portrait

Centralized-Control-Managment

What is User Digital Signage?

Digital signage is an electronic sign used to transfer and announce visual information to customers in the store or commuters on street. Display system utilized in this signage uses LCD, LED or projection screen for showing both images and videos. Moreover about the application of digital signage, it can be mentioned that it can be used in many places such waiting rooms, building entrances, stores, education centers, cinema, hospital and many other countless places.

According to business requirement, digital signage can be customized to be prepared for specific purposes. Following we’ll discuss them.



– Floor standing:

If you don’t have enough space in your location or a wall to mount your signage on, surely this is the best possible solution for your condition.

Ultra-thin floor standing digital signage Ultra-thin floor standing digital signageUltra-thin floor standing digital signage Ultra-thin floor standing digital signage

Wall mount:

Wall mount digital signage is another type of our various products among digital signage devices that has attracted customer’s attention. The interesting thing is that it is available in modern original black frame and classic wooden frame.

Wall mount digital signageWall mount digital signageWall mount digital signage

Stretched bar digital signage:

This innovative signage which looks fantasy is quite suitable for your wide images and videos. You might worry about picture resolution in different angles, User ensures you about it, because all of our products use wide-view angle technology.

                                  Stretched bar digital signageStretched bar digital signage

Shop-window:

Shop-window digital signage is specifically designed for spacious shopping centers where advertisement should be visible and bright enough even for audiences who are standing meters away.

                Shop-window digital signage                                                  Shop-window digital signage

K-stand touchscreen:

With this type of interactive digital signage, your customer don’t have to just watch the screen. They would be engaged to interact via touchscreens or smartphones. In this way they can explore among various items, choose them and enter any information.

K-stand touchscreen digital signageK-stand touchscreen digital sigangeK-stand touchscreen digital signage

Above all, here we explore some of the features of Floor Standing Digital Signage:

High-quality LCD Screen

User provides the device with a high-quality screen which utilizes explosion-proof glass. To explore the details, the screen is anti-violent, scratch-resistant, dust-proof and waterproof that helps you maintain in better. Besides, Industrial high-performance LCD screen ensures high image clarity, high brightness and stability of use. It can also be upgrade from 1080P to 2K or 4K .Different screen sizes are available from 28 inches to 49.5

Operating system (OS):

User Company floor-standing digital signage comes with customized operating system that will put your hands to choose your preferred OS among Windows, Android, Linux or even standalone OS . In this way, you will supply pleasant user experience for your customers based on their interest.

Storage

Due to increasing size of high-quality media files, User supplies it with high-capacity via internal and external storage. In addition to internal storage varying from 512MB to 2GB, an external storage could be inserted via USB, HDD and SSD. In this way, you will never have any shortage.

Multiple Inputs

Powerful interface supporting a wide range of audio and video inputs like SD card and USB Flash and outputs such as HDMI/VGA/DVI/USB.

Multiple Configuration

You can easily choose among basic level, middle level and top level. Different levels are various in processor from Dual-Core to Dual-Core. Its OS version is available Android 4.1 to Android 7.1 .Moreover we let you to choose your favorite OS between Android, Windows, Linux or standalone OS.

Signage Body

The covering shell of floor-standing signage is made up of high-strength steel, which is ultra-thin, beautiful and strong, and has excellent protection performance.

Automatic Switch Machine

If you are a busy person who forgets to turn off your digital signage at night, this feature can save you from paying high-price electricity bill. Automatic switch machine will get an administrator schedule and act exactly based on your set time.

24/7 Usage

As one the important features of floor stand digital signage is to be able to work continuously for long hours and days. User Company digital signage devices are built for 24/7 commercial use of uninterrupted work with the stable performance.

Wide-Viewing Angle

Unlike a conventional display surface which it’s not possible to view the monitor at 178 degrees (side to side). User LCD video walls let you have this wide viewing angle keeping display brightness and contrast.

Eco-Friendly Power Timer

The Eco-friendly power timer lets you assign hourly, daily or weekly on and off times for screen. By this feature, the power is consumed as it is needed. Moreover it is be really effective in energy consumption.

IPS Commercial Grade Panel

IPS (In-plane switching) is a screen technology for LCD monitors. Firstly, this was designed to solve the unignorable limitations such as strong viewing angle dependence and low-quality color reproduction.

Lifetime Technical Support

This is also a crucial support department in User Company. Counting over twenty technician and engineers to help service any issues that might occur during the life cycle of your displays. Our current final failure rate is below 1.7%. We strive on a daily basis to keep lowering these statistics. Our weekly meetings between our after sales and QC teams truly help us achieve these hard set goals.

3 Years Warranty

User Company has 3 years of warranty for all the products in there will be a technical issue in your display systems. Usersdt Warranty covers the defects resulting from defective parts, materials or manufacturing.The device is considered defective if it fails to perform the functions as indicated in the operation manuals, technical specifications or any other similar documents supplied with the equipment, and the failure is due to internal device characteristics.

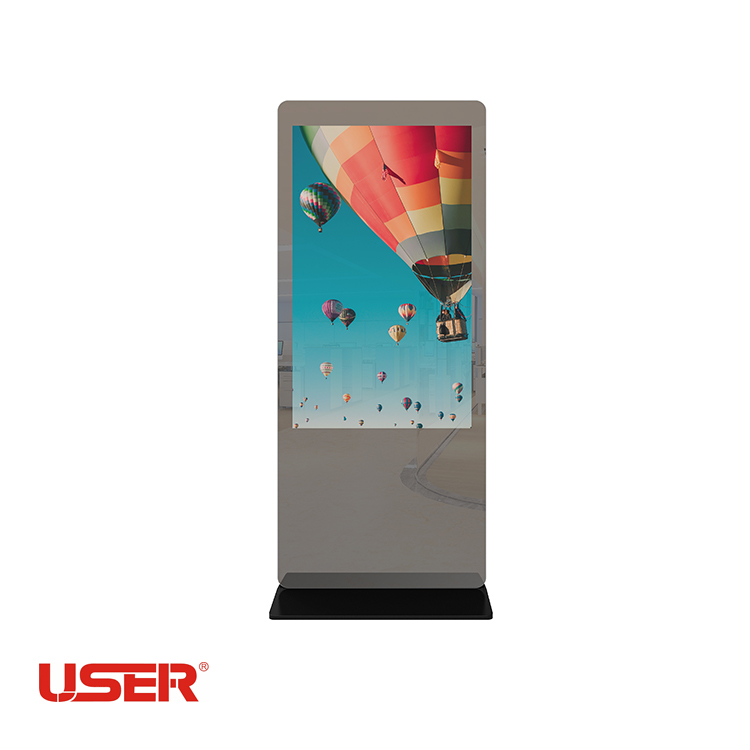

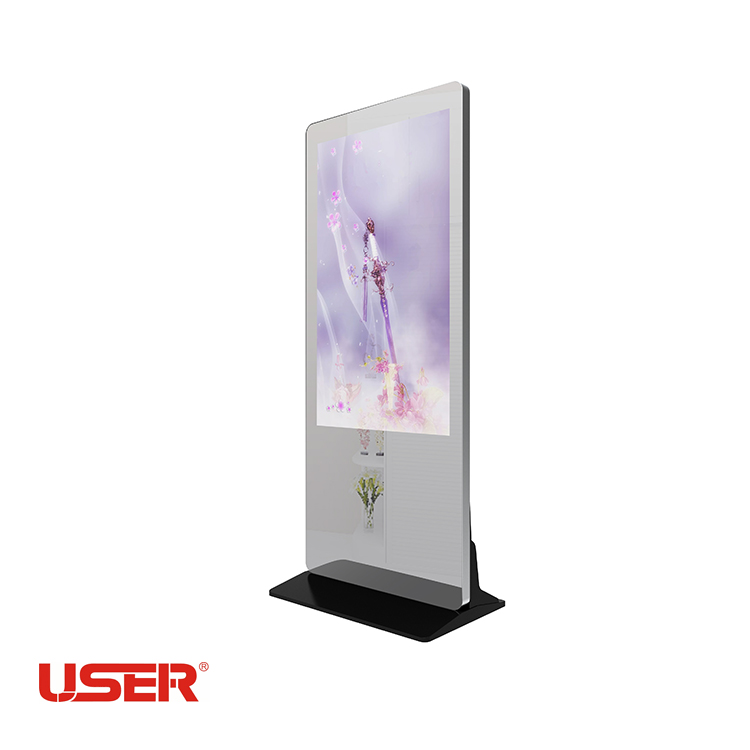

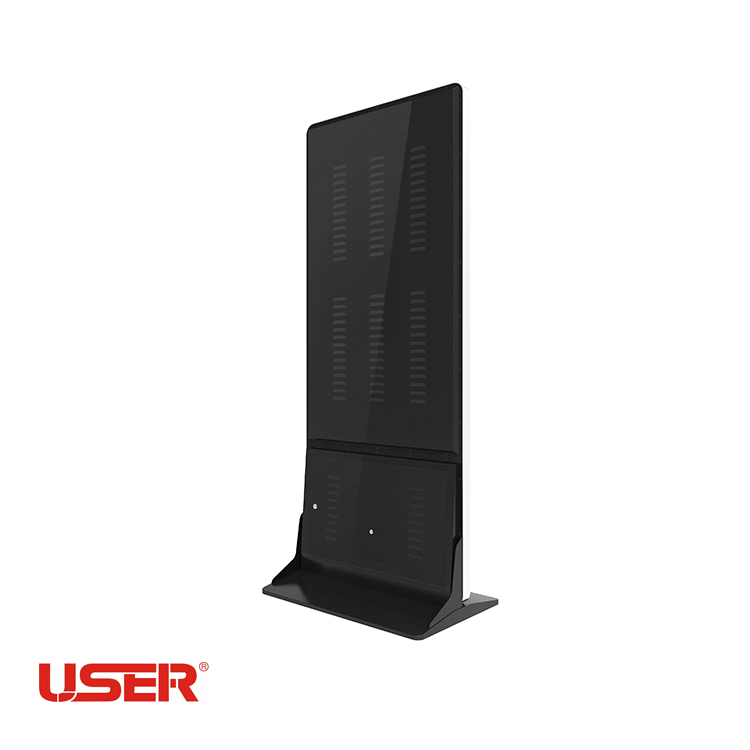

User Ultra-thin floor standing Digital Signage

Product model US-AD*****
Screen

parameters

Size 32”- 86” Audio system Horn 2×5W(8Ω)
Back type Backlight integration Sound mode standard
Display Proportion 16:9 Output Interface PC output interface RJ45 1、USB  2
Physical resolution 1920X1080 L/R Audio output 1 RCA X2
Color depth 16.7M Power consumption Input voltage C 100~240v 50/60HZ
Viewing angle R/L/U/D 89/89/89/89 Standby power / rated power ≤3W/≤180W
Brightness 450 cd/㎡ Cabinet Material SPCC
Contrast 5000:1 Exterior color Black (default) gold silver
Response time 5ms External conditions Working temperature / humidity 0℃~50℃/20%~80%
Service time 60000 hours Storage temperature / humidity -10℃~60℃/5–95%
Screen Size Power
Screen size Power





32 inch 43 inch 49 inch 55 inch 65 inch 75 inch 86 inch
Standalone version 70W 85W 100W 115W 180W 240W 380W
Android system 70W 85W 100W 115W 180W 240W 380W
Low power consumption

One machine series

90W 100W 120W 135W 180W 260W 300W
Desktop machine series 150W 170W 190W 220W 250W 330W 390W
Touch Panel
Touch Panel Options Infrared Touch (IR Touch ) Capacitive Touch Nano Capacitive Touch
Touch Points 10 points touch 10 points touch 10 points touch
Material IR Tube G+G G+F
Response Time <8ms <3ms <5ms
Touch Times 50 million times 50 million times 50 million times
Transmittance 0.92 0.95 0.85
Control Processing Unit (CPU)
Version CPU Internal Storage Out Storage Interface System supporting
Display Version E9-B11/ E9-BNC/E6J-AV No storage USB /HDD/SSD HDMI/VGA/DVI/USB Android /Windows/Linux OS
Standalone Version Mstar V56 No storage

( 8G/16G available)

support SD card and USB Flash HDMI/USB/SD Only Standalone OS
Operating System (OS)
Operating System CPU System Version Graphics RAM Storage
Windows OS Core-i3 Win 7/ Win 10 3.7HZ/3.9HZ 4G (8G available ) 120G SSD/500G HDD
Core-i5 Win 7/ Win 10 3.2HZ/3.4HZ 4G (8G available ) 120G SSD/500G HDD
Core-i7 Win 7/ Win 10 3.4HZ/3.6HZ 4G (8G available ) 120G SSD/500G HDD
Configuration
Configuration CPU Chip architecture Processor Maximum resolution support System Version Storage
Basic level A20 Cortex-A7 Dual-Core 1080P Android 4.1 512Mb +8G
A33 CortexTM-A7 Quad-core 1080P Android 4.4 512Mb/1Gb +8G
A64 Cortex-A53 Quad-core 1080P Android 5.1 512Mb/1Gb +8G
Middle level RK3128 Cortex-A7 Quad-Core 1080P Android 6.0 512Mb/1Gb +8G
RK3368 Coretex-A53 Octa-Core 2K/4K Android 6.0 1Gb/2Gb +8G
RK3188 Cortex A9 Quad-Core 2K Android 6.0 1Gb/2Gb +8G
Top level RK3288 Cortex-A17 Quad-Core 4K Android 6.0 2Gb +8G
RK3399 Cortex-A72 Dual-core +Quad-core 4K Android 7.1 4Gb +16G
Amlogic T960X Cortex-A53 Quad-Core 4K Android 7.1 2Gb+8G
