Infrared & Capacitive Touch

Wide-View Angle

Windows Ready

multiple-users

Centralized Terminal

Android Ready

24/7 Usage

Landscape & Portrait

IPS panel

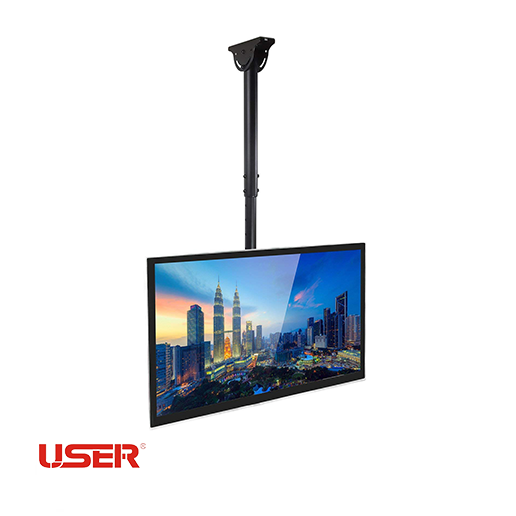

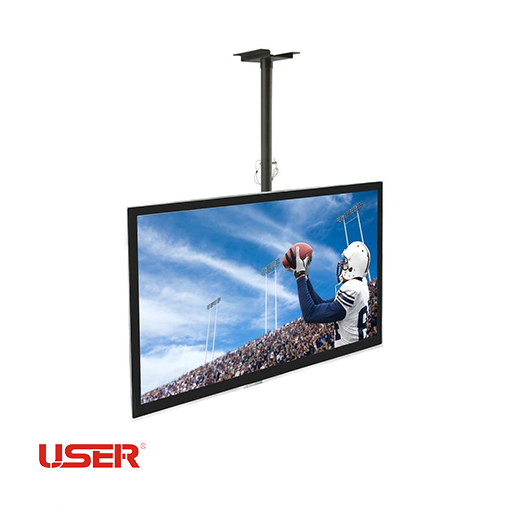

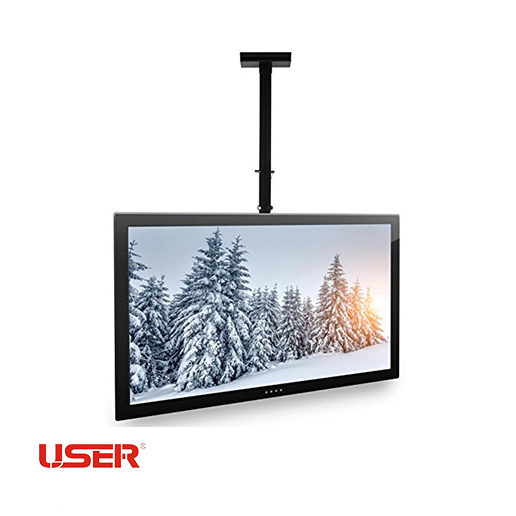

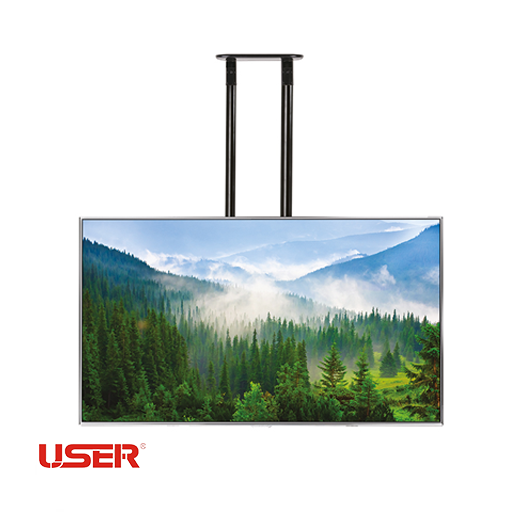

What is User 49″ Ceiling Mounted Digital Signage?

Ceiling Mounted Digital Signage is eye-catching ultra-wide screen series of Digital Signage hanging from ceiling that clients and audiences can easily interact with it via high-resolution graphical content. ceiling mounted digital signage devices are commonly used to transfer and announce visual information of products, services and much more information to the public. Generally, digital signage player, a computer embedded within the 49 inch ceiling mounted digital signage is responsible to feed images, videos or interactive content on player screen. Display system utilized in this digital advertising display uses LCD screen to illustrate visual graphical content. Choosing appropriately customized hardware depends on how complex and high-definition your advertising content is. Besides hardware that is like other electronic devices, the digital ads player requires content management software (CMS) to design, deploy and schedule digital content.

Applications of ceiling mounted advertising display is a lot to count, it can be used in any public arena for various purposes. These devices can be found anywhere. Mostly 49inch ceiling mounting LCD/LED digital signage focus on airport, university, restaurant, supermarket and transportation area, which mainly use for shows the price information for the goods on the shelf and bus/train routine and time schedule on metro or bus station. This type of advertising signage can either double side or single side.

Floor standing

If you don’t have enough space in your location or a wall to mount your signage on, surely this is the best possible solution for your condition. Moreover some of our floor stands have magazine holder. In this way you can purchase two in one. Floor standing is know as A Frame or Poster and so on that are available only in big screen sizes from 56″ to 68″

Wall mount

Wall mount digital signage is another type of our various products among digital signage devices that has attracted customer’s attention. The interesting thing is that it is available in modern original black frame and classic wooden frame.

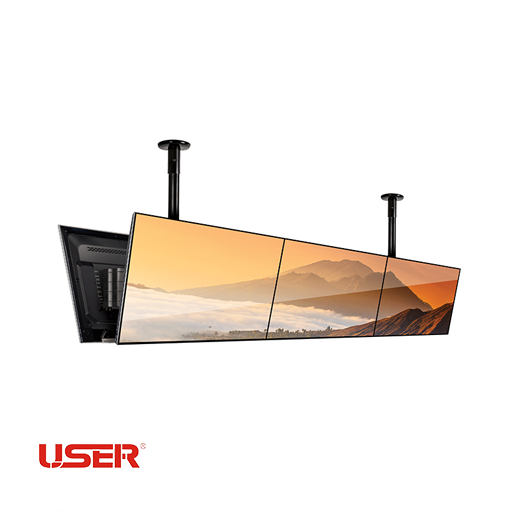

Stretched bar

This innovative signage which looks fantasy is quite suitable for your wide images and videos. You might worry about picture resolution in different angles, User ensures you about it, because all of our products use wide-view angle technology.

Shop window

Shop-window digital player is specifically designed for spacious shopping centers where advertisement should be visible and bright enough even for audiences who are standing meters away.

floor standing
Wall mount
Stretched Bar
Shop window

55″ Ceiling Mounted Digital Signage Usages

Education by USER interactive kiosk

Education

at schools, colleges and universities

Catalogue

at exhibitions and company offices

Check-in by USER interactive kiosk

Check-in

At airports, hotels and hospitals

Order by USER interactive kiosk

Order

Items in store or restaurant meals

Schedule by USER interactive kiosk

Schedule

At schools, colleges and universities

Purchase Tickets by USER interactive kiosk

Purchase Tickets

for public transportation, cinema and etc.

Get Product Quotation ONLINE!

To know more about this product, you should definitely check “Top benefits of wall mounted digital signage” guide. In addition, explore through some of the features of “Ceiling Mounted Digital Signage”:

High-quality Screen

User provides 55inch ceiling mounted digital signage with a high-quality screen which utilizes explosion-proof glass. To explore the details, the screen is anti-violent, scratch-resistant, dust-proof and waterproof that helps you maintain in better. Besides, Industrial high-performance screen ensures high image clarity, high brightness and stability of use. It can also be upgrade from 1080P to 2K or 4K . Normally LCD digital advertising display players are designed in different levels of being temperature tolerance and water and wind for indoor and outdoor environments.

Stretched bar LCD display

Operating system (OS):

User interactive LCD digital signage series come with customized operating system that will put your hands to choose your preferred OS among Windows, Android, Linux or even standalone OS . In this way, you will supply pleasant user experience for your customers based on their interest.

Screen Size

You should always choose an appropriate touch screen size considering your environment, device application, user experience. Luckily, USER Display Solution has designed digital displays in various model and sizes to provide your needs. Among all sizes the most common ones are 32, 43, 49 and 55 inches.

kiosk screen sizekiosk screen size

Player Shell

The shell is made of high-strength steel, which is ultra-thin, beautiful and strong, and has excellent protection performance. The material and design of shell is one the significant which provides possibility of using in both indoor and outdoor conditions.

One-key Operation

55-inch ceiling mounted digital signage can be operated in two methods:

  • Remote control through wireless connection
  • USB Playback

One-key Operation

Multiple Configuration

You can easily choose among basic level, middle level and top level. Different levels are various in processor from Dual-Core to Dual-Core. Its OS version is available Android 4.1 to Android 7.1 .Moreover we let you to choose your favorite OS between Android, Windows, Linux or standalone OS.

24/7 Usage

As one the important features of ceiling mounted advertising display is to be able to work continuously for long hours and days. User Company digital signage devices are built for 24/7 commercial use of uninterrupted work with the stable performance.

Stretched bar display

Wide-Viewing Angle

Unlike a conventional display surface which it’s not possible to view the monitor at 178 degrees (side to side). User ceiling mounted smart digital signage lets you have this wide viewing angle keeping display brightness and contrast.

wide viewing angle

Eco-Friendly Power Timer

The Eco-friendly power timer lets you assign hourly, daily or weekly on and off times for screen. By this feature, the power is consumed as it is needed. Moreover it is be really effective in energy consumption.

IPS Commercial Grade Panel

IPS (In-plane switching) is a screen technology for LED monitors. This was designed to solve the unignorable limitations such as strong viewing angle dependence and low-quality color reproduction.

Storage

Due to increasing size of high-quality media files, User supplies it with high-capacity via internal and external storage. In addition to internal storage varying from 512MB to 2GB, an external storage could be inserted via USB, HDD and SSD. In this way, you will never have any shortage.

Centralized Terminal Management

A cloud-based system that provides real-time control and insights of ceiling mounted smart interactive signage, enabling operators to remotely manage content, display schedule and other functions.

Multiple Inputs

Powerful interface supporting a wide range of audio and video inputs like SD card and USB Flash and outputs such as HDMI/VGA/DVI/USB. The USER manufacturer has considered fast dynamic picture without any delay or even frame loss to enhance the UX (user experience).

Lifetime Technical Support

This is also a crucial support department in User Company. Counting over twenty technician and engineers to help service any issues that might occur during the life cycle of your displays. Our current final failure rate is below 1.7%. We strive on a daily basis to keep lowering these statistics. Our weekly meetings between our after sales and QC teams truly help us achieve these hard set goals.

3 Years Warranty

User Company has 3 years of warranty for all the products in there will be a technical issue in your display systems. Usersdt Warranty covers the defects resulting from defective parts, materials or manufacturing. The device is considered defective if it fails to perform the functions as indicated in the operation manuals, technical specifications or any other similar documents supplied with the equipment, and the failure is due to internal device characteristics.

Automatic Switch Machine

If you are a busy person who forgets to turn off your ceiling mounting digital display at night, this feature can save you from paying high-price electricity bill. Automatic switch machine will get an administrator schedule and act exactly based on your set time.

55″ Ceiling Mounted Advertising Display

Product modelUS-AD*****

Screen

parameters

Size32”- 75”Audio systemHorn2×5W(8Ω)
Back typeBacklight integrationSound modestandard
Display Proportion16:9Output InterfacePC output interfaceRJ45 1、USB  2
Physical resolution1920X1080L/R Audio output1 RCA X2
Color depth16.7MPower consumptionInput voltageC 100~240v 50/60HZ
Viewing angleR/L/U/D 89/89/89/89Standby power / rated power≤3W/≤180W
Brightness450 cd/㎡CabinetMaterialSPCC
Contrast5000:1Exterior colorBlack (default) gold silver
Response time5msExternal conditionsWorking temperature / humidity0℃~50℃/20%~80%
Service time60000 hoursStorage temperature / humidity-10℃~60℃/5–95%

Screen Size Power







18.5 inch21.5 inch27 inch32 inch43 inch49 inch55 inch65 inch75 inch86 inch98 inch
Standalone version25W30W50W70W85W100W115W180W240W380W550W
Android system25W30W50W70W85W100W115W180W240W380W550W

Low power consumption

One machine series

38W40W50W90W100W120W135W180W260W300W500W
Desktop machine series95W98W110W150W170W190W220W250W330W390W600W

Touch Panel
Touch Panel OptionsInfrared Touch (IR Touch )Capacitive TouchNano Capacitive Touch
Touch Points10 points touch10 points touch10 points touch
MaterialIR TubeG+GG+F
Response Time<8ms<3ms<5ms
Touch Times50 million times50 million times50 million times
Transmittance0.920.950.85

Control Processing Unit (CPU)
VersionCPUInternal StorageOut StorageInterfaceSystem supporting
Display VersionE9-B11/ E9-BNC/E6J-AVNo storageUSB /HDD/SSDHDMI/VGA/DVI/USBAndroid /Windows/Linux OS
Standalone VersionMstar V56

No storage

( 8G/16G available)

support SD card and USB FlashHDMI/USB/SDOnly Standalone OS

Operating System (OS)
Operating SystemCPUSystem VersionGraphicsRAMStorage
Windows OSCore-i3Win 7/ Win 103.7HZ/3.9HZ4G (8G available )120G SSD/500G HDD
Core-i5Win 7/ Win 103.2HZ/3.4HZ4G (8G available )120G SSD/500G HDD
Core-i7Win 7/ Win 103.4HZ/3.6HZ4G (8G available )120G SSD/500G HDD

Configuration
ConfigurationCPUChip architectureProcessorMaximum resolution supportSystem VersionStorage
Basic levelA20Cortex-A7Dual-Core1080PAndroid 4.1512Mb +8G
A33CortexTM-A7Quad-core1080PAndroid 4.4512Mb/1Gb +8G
A64Cortex-A53Quad-core1080PAndroid 5.1512Mb/1Gb +8G
Middle levelRK3128Cortex-A7Quad-Core1080PAndroid 6.0512Mb/1Gb +8G
RK3368Coretex-A53Octa-Core2K/4KAndroid 6.01Gb/2Gb +8G
RK3188Cortex A9Quad-Core2KAndroid 6.01Gb/2Gb +8G
Top levelRK3288Cortex-A17Quad-Core4KAndroid 6.02Gb +8G
RK3399Cortex-A72Dual-core +Quad-core4KAndroid 7.14Gb +16G
Amlogic T960XCortex-A53Quad-Core4KAndroid 7.12Gb+8G
