4×4 Video Wall

Infrared & Capacitive Touch

Wide-View Angle

Windows Ready

Bezel-free

Bezel Free Display

Android Ready

24/7 Usage

Landscape & Portrait

Anti-glare Screen

Anti-glare

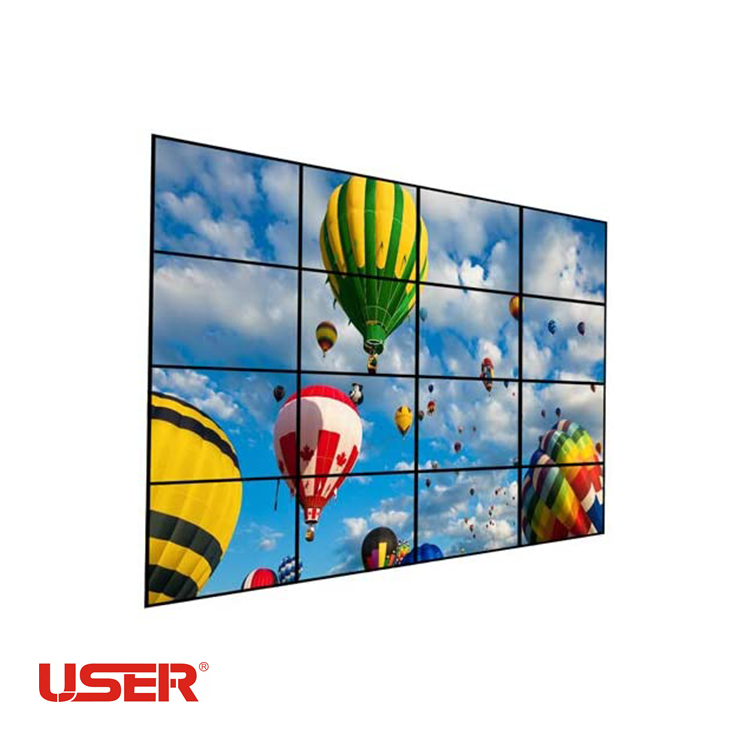

What is User 4×4 Video Wall ?

Video Wall is a large touch visualization surface that is made by various displays called ‘tiles’. A 4×4 Video Wall is made of 16 single displays in two rows that offers an effective way to serve your content with serious ‘wow’ factor on a scale not usually seen by audiences. The amazing high-tech interactive 4×4 videowall engages audiences more and more as it gives them the control of visual content. Researches has shown that getting control of the content and feeling the ownership of the product, absolutely pushes them forward to purchase it .

4×4 Video Walls are manufactured in different pixel pitch. “Pixel Pitch” refers to the space between pixels in millimeters. In other words, the smaller or more narrow, the pixel pitch the higher the picture resolution. P0.93, P1.25, P1.5, P1.56, P1.87, P2, P2.5, P3, P4, P5 are appropriate for indoor and P2.5, P3, P3.8, P4, P5, P8, P10, P16. This type of video wall is mostly designed bezel-free or narrow-bezel .

“Bezel” refers to frame around each digital screen which is “tile” in video wall. Design of these individual displays is specifically for use in these applications . In other words it has much better quality than normal TV screens that is not comparable. Normal television sets are capable of working for a few hours day. While these specific panels are expected to work much more hours, often 24/7 or even days continuously .

Let’s watch some videos of interactive video wall. You will be amazed by super high display quality!!!!

You shouldn’t worry about location of your interactive video wall display, USER offers various types of installation

If you don’t have enough knowledge about LCD and LED display technologies, “Difference between LED and LCD in video wall” is surely a useful guide. Above all, here we explore some of the most considerable features of “Interactive Video Wall“:

Narrow Bezel Width

Width of bezel in 4×4 LCD video walls is one of the most considered criterion in its structure which should be as thin as possible. Otherwise it would make an unpleasant visual experience for you. Modern LCD 4×4 video wall tiles have a narrow bezel. In User, we have provided you 4by4 video walls featuring ultra narrow bezels and advanced picture enhancement technology. So it’ll let you have superb quality images proper for different business environment.

Operating system (OS):

Our 4×4 video wall series come with customized operating system that will put your hands to choose your preferred OS among Windows, Android or even standalone OS . In this way, you will supply pleasant user experience for your customers based on their interest.

Multiple Inputs

Powerful interface supporting a wide range of audio and video inputs like SD card and USB Flash and outputs such as HDMI/VGA/DVI/USB. The USER manufacturer has considered fast dynamic picture without any delay or even frame loss to enhance the UX (user experience).

Multiple Configuration

You can easily choose among basic level, middle level and top level. Different levels are various in processor from Dual-Core to Dual-Core. Its OS version is available Android 4.1 to Android 7.1 .Moreover we let you to choose your favorite OS between Android, Windows, Linux or standalone OS.

Intelligent Split Screen

Intelligent Split Screen is an attractive item in your LCD video wall control software. It helps to take most benefit of your device and use each of its screens to display various visual content.

LCD videowall-Irregular splicing

3D Processing Kernel

3-Dimensional digital image processing kernel equipped in narrow bezel LCD video walls are for precise monitoring of more details.

IPS Commercial Grade Panel

IPS (In-plane switching) is a screen technology for LCD monitors. This was designed to solve the unignorable limitations such as strong viewing angle dependence and low-quality color reproduction.

Automatic Switch Machine

If you are a busy person who forgets to turn off your 1.8mm bezel LCD video wall at night, this feature can save you from paying high-price electricity bill. Automatic switch machine will get an administrator schedule and act exactly based on your set time.

Eco-Friendly Power Timer

The Eco-friendly power timer lets you assign hourly, daily or weekly on and off times for screen. By this feature, the power is consumed as it is needed. Moreover it is be really effective in energy consumption.

100.000 Hours Lifespan

It’s estimated that lifespan of LCD video wall could be approximately 60,000 hours depending on the life of its backlighting bulb. Besides for LEDs have expected lifespan of twice more than LCDs about 100,000 hours.

Lifetime Technical Support

This is also a crucial support department in User Company. Counting over twenty technician and engineers to help service any issues that might occur during the life cycle of your displays. Our current final failure rate is below 1.7%. We strive on a daily basis to keep lowering these statistics. Our weekly meetings between our after sales and QC teams truly help us achieve these hard set goals.

24/7 Usage

As one the important features of 4×4 LCD video wall is to be able to work continuously for long hours and days. User Company video wall devices are built for 24/7 commercial use of uninterrupted work with the stable performance.

Front Maintenance

The maintenance of indoor and outdoor LCD video wall contains front maintenance. With the development in the LCD screen industry, the pixel pitch of the LCD screen is smaller and smaller. As a result, it makes the maintenance easier and quicker and from the front side.

Various Wall Display Sizes

Choosing propriate wall display size based on your environment size is a signification factor in purchasing LCD video wall. There is no limit for you if you require this display solution for cinema, concert hall, university, stadium, shopping mall or etc.

Built-in mosaic controller

Built-in mosaic controller which is located on display panel, runs complicated shows quite precisely. In fact , it supports DMX512 and DMX-Over-Ethernet protocols to LED fixtures, conventional dimmable fixtures and automated lights. Mosaic Show Controllers also called MSC , offer up to 2048 channels of control from a single controller. Above all, to read more click here .

Automatic Color & Brightness Calibration

You can never have perfect color and brightness settings unless your bezel-free videowall isn’t equipped with automatic color & brightness calibration system. It means all of the panels need to be synchronized with the surrounding displays. Even a small deviation in color or brightness will make you disasters in display balance.

Automatic Calibration 1

Automatic Calibration 1
Color Calibration in LCD video wall

Wide-Viewing Angle

Unlike a conventional display surface which it’s not possible to view the monitor at 178 degrees (side to side). User LCD display wall let you have this wide viewing angle keeping display brightness and contrast.

wide viewing angle

3 Years Warranty

User Company has 3 years of warranty for all the products in there will be a technical issue in your display systems. Usersdt Warranty covers the defects resulting from defective parts, materials or manufacturing. The device is considered defective if it fails to perform the functions as indicated in the operation manuals, technical specifications or any other similar documents supplied with the equipment, and the failure is due to internal device characteristics.

















Technical parameters

Pixel spacing (mm) 10.0
Pixel structure 1R1G1B
Lamp bead SMD1921
Pixel density (dot/m²) 10000
Module size (W x H) (mm) 250×250
Module resolution (W×H) points 52×52
Box size (W×H) (mm) 640*480
Module bottom Shell material (optional) Die-cast magnesium & aluminum alloy
The body material Die cast magnesium alloy
Scanning way 1/40
Box flatness (mm) ≤0.10
Gray Level (Bit) 14
Protection grade IP65
Installation/maintenance mode Front and rear installation/maintenance





The optical properties

brightness ≥5000CD/㎡
Color temperature (adjustable) 3200-9300k is adjustable
Brightness uniformity ≥98%
Color uniformity 0.003Cx,Cy
Horizontal/vertical view ≥140°/≥120°
contrast ≥5000:1
Single point color correction support
Single point brightness correction support









Electrical and environmental characteristics

Drive way Constant current drive
Module power supply voltage DC 5V
Maximum module current DC 5A
Receiving Card (optional) Callet/Nova/Spirit Star Rain
In the frame frequency 50/60Hz
Maximum refresh frequency ≥3840Hz
Signal interface mode HUB75E
Input voltage AC 110-220V
Peak power consumption ≤580W/m2
The average power consumption ≤180W/m2
Operating temperature -20℃~+80℃
Humidity of working environment 10%~95%RH

Q: What is video wall?

A: Video wall is a large visualization surface that is made by displays pieces called ‘tiles’.

Q: What is tile in video wall?

A: Tiles are individual LCD and LED display which form a complete video wall.

Q: What does video wall mean?

A: A video wall is a special multi-monitor setup that consists of multiple computer monitors, video projectors, or television sets tiled together contiguously or overlapped in order to form one large screen.

Q: What is wall display?

A: Wall display is another name of video wall.

Q: What are video wall installation methods?

A: Commonly, they are in installed as Hanging, Bracket, Wall-mounted, Cabinet.

Q: Which sizes are video walls available in?

A: These display walls are available in a wide range of sizes, typically with a screen diameter between 46” and 80″.

Q: What is difference between LCD and LED video wall?

A: Differences are a lot, while the most significant are Display quality, Lifespan, Power consumption and Bezel width

Q: What kinds of video wall there are?

A: • Panel based video walls.
• Cube based video walls.
• Projection based seamless displays.

Q: What is bezel in video wall?

A: “Bezel” refers to frame around each digital screen which is “tile” in video wall.

Q: Does LED video wall have any bezel?

A: No, all LED video walls are bezel-less.

Q: Where can video wall be located?

A: They are both for indoor and outdoor usages. It can tolerate working from -30 to +60 Centigrade.

Q: How can I install video wall?

A: You don’t have to know about video wall installation. USER technical team will come to your location and install it for you.

Q: Where can video wall be used?

A: Video walls are used in many public places such as stadium, control room, shopping mall, airport, university, hospital and etc.

Q: What are video wall usages?

A: Video walls impress viewers with large-scale graphics or videos displayed on multiple screens, creating a digital visual that goes beyond the current size of a single sign display. Contemporary lobbies can project stunning visuals that even include live TV onto their video walls

Q: How much does a LED video wall cost?

A: Companies typically budget anywhere between $50k and $350k for their LED video wall project.

Q: How much does an LCD video wall cost?

A: While there are many options and factors for a video wall, a decent starting price for a 2×2 video wall made up of 46” LCD monitors is about $18,000.

Q: Why are video walls so expensive?

A: The overall costs of a video wall depend largely on size, processor, type of display technology and quality of video mounts, as well as ancillary costs like installation, making video walls one of the most customizable pieces of technology you can install.

Q: What is the liquid in LCD screen of video wall?

A: The basis of LCD technology is the liquid crystal, a substance made of complicated molecules. Like water, liquid crystals are solid at low temperatures. Also like water, they melt as you heat them. But when ice melts, it changes into a clear, easily flowing liquid.

Q: How much is life span of a video wall?

A: It’s estimated that lifespan of LCD could be approximately 60,000 hours depending on the life of its backlighting bulb. While for LEDs have expected lifespan of twice more than LCDs about 100,000 hours.

Q: How can I control content of video wall?

A: The control of graphical content is via video wall controller (processor). It takes one or several inputs (sources), and split the content for delivery onto multiple displays, and generally enable administrators to manage the configuration or contents of their video wall.

Q: What is Intelligent Split Screen feature?

A: Yes, this is a useful feature which allows you have many images and videos all in one wall display.

Q: Why should I buy a video wall?

A: Because it really helps you to entertainingly present you sales, new products or services in order to attract crowd attention on the street in a cost- effective way and finally Increases In-store digital/Social media presence.

Q: Is there any warranty for video wall?

A: User Company has 3 years of warranty for all the products in there will be a technical issue in your display systems. Usersdt Warranty covers the defects resulting from defective parts, materials or manufacturing. The device is considered defective if it fails to perform the functions as indicated in the operation manuals, technical specifications or any other similar documents supplied with the equipment, and the failure is due to internal device characteristics.

Q: What type of businesses can use video wall?

A: Video wall is appropriate for almost all kinds of businesses including markets, private companies, public utility companies who need to attract more view of crowd and serve them more.

Q: Do video walls have wide-viewing angle?

A: Unlike a conventional display surface which it’s not possible to view the monitor at 178 degrees (side to side). User LED display wall let you have this wide viewing angle keeping display brightness and contrast.

Q: What should I do if one piece of my video wall gets black?

A: As video wall is made by some smaller tiles, if any parts or pixels of wall display get black or burn out, it is easily replaced with another tile.

Q: Can I also have rental video wall?

A: Yes, many businesses that can’t afford to buy one or just need video wall for special events and exhibitions.

Q: How much do video wall rentals cost?

A: You can expect your mobile LED screen rental rate to be close to $50 per square foot and modular video wall cost to be closer to $70 per square foot.

Q: Is video wall one piece of display?

A: No, actually video wall is formed by some big pieces of screens.

Q: What does a video wall controller do?

A: A video wall controller (sometimes called “processor”) is a device that splits a single image into parts to be displayed on individual screens.

Q: How do I use a video wall?

A: 1- Determine your display dimensions. The first step is to determine how many displays you want in your video walls.
2- Get a video wall controller. Next, you’ll need to purchase a video wall controller.
3- Add videowall software to show beautiful content on the screens.

Q: What is P10 LED display?

A: P10 32×16 (Total 512 LEDs) LED Display module is the easiest way to put together any size of Outdoor or Indoor LED display sign board.

Q: What is quality of video wall display?

A: LED and LCD video wall quality can be 720P, 2K and 4K.

Q: Is tempered glass used in USER video wall?

A: Yes, it is.

Q: What is pitch pixel in video wall?

A: Pixel Pitch refers to the space between pixels in millimeters. In other words, the smaller or more narrow, the pixel pitch the higher the picture resolution.

Q: Are video walls dust and waterproof?

A: Yes, they are especially outdoor ones.

Q: What is cabinet frame material of video walls?

A: It’s made of die-casting aluminum

Q: How much is required electricity voltage of a video wall?

A: t’s 110-220 VAC/+/- 10%

Q: What are the advantages of video wall?

A: • Attracting crowd attention
• Presenting you sales, new products or services very entertainingly
• Cost-effective
• Dynamic advertising content
• Boosts impulse purchase sales
• Increases In-store digital/Social media presence
