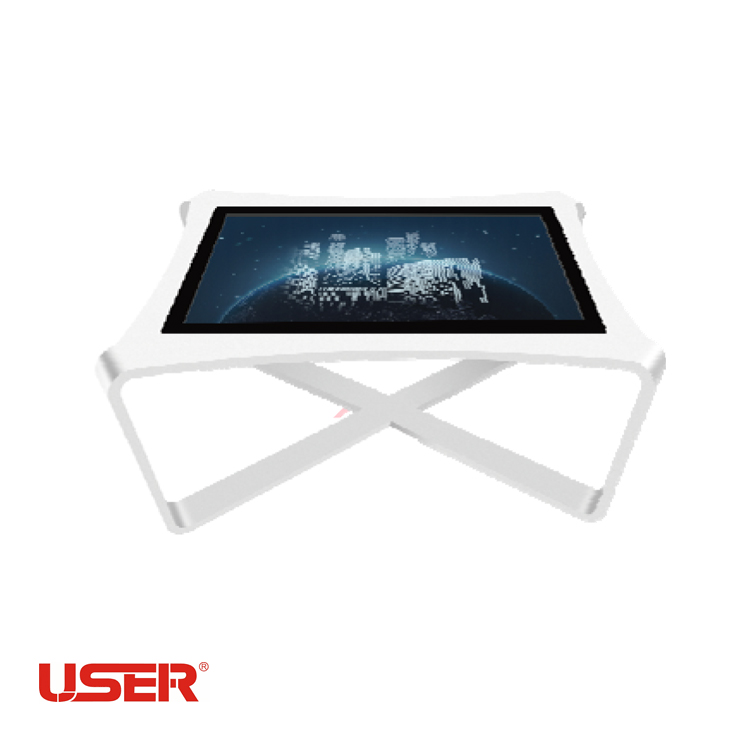

What is User Touchscreen Coffee Table?
Touchscreen Coffee Table (touch table) is an ultra-modern table designed and developed to provide customers a pleasant user experience. In other words, Users can be engaged by connecting to information and self-service by their own fingertips. People spend a huge part of their time using high-tech gadgets such as mobile and tablets, so they would really like to have this enjoyable experience in public places. In addition It’s been proved that collaboration and engagement rate among audiences is much more via touchscreens in comparison with traditional methods. Restaurants, museums, exhibitions, education centers, offices are just some of the first places that come to mind where presence of touch table can make a great revolution in their performance.
Why should you buy a touch table?
There are lots of applications for this state-of-art touchscreen coffee table in different location.While to make you more familiar, we’ll mention some of most significant ones below:
- Browsing menus
- Ordering food
- Accessing special offers
- Data capture of telephone and email for loyalty schemes
- Reading news websites
- Playing games
- Sharing on social media
Here we explore some of the features:
High-quality LCD Screen
provides the device with a high-quality screen which utilizes explosion-proof glass. To explore the details, the touchable screen is anti-violent, scratch-resistant, dust-proof and waterproof that helps you maintain in better.Besides, Industrial high-performance LCD screen ensures high image clarity, high brightness and stability of use. It can also be upgrade from 1080P to 2K or 4K .
Touch Panel
User corporation has supplied touch panel of device coming with three various technologies with different materials respectively named Infrared Touch (IR Touch), Capacitive Touch and Nano Capacitive Touch.Similarly In all of them we will have 10 touch points and 50 million touch times. However if you require high response time, Nano Capacitive Touch will be the best option.
Multiple Inputs
Powerful interface supporting a wide range of audio and video inputs, such as Display Port, HDMI, VGA, DVI, PC-RGB.
Tempered glass
Tempered glass installed on its touchscreen will ensure you not to have any worries about possible scratch or hit and even water spilling. Although it provides these benefits, it doesn’t affect its highly sensitive touchscreen.
Various Sizes
Industrial liquid crystal LED display is available in different sized from 37″ up to 46″. So you can easily choose among them according to your restaurant or cafe space.
Table body
The covering shell of table is made up of strong aluminium body with powder coated paint, which is rust proof, anti-magnetic and anti-static, and has excellent protection performance.
24/7 usage
As one the important features of touchscreen coffee table is to be able to work non-stop for long hours or even whole days of week. touchscreen tables are built for 24/7 commercial use of uninterrupted work with the stable performance.
Multiple Configuration
You can easily choose among basic level, middle level and top level. Different levels are various in processor from Dual-Core to Dual-Core. Its OS version is available Android 4.1 to Android 7.1 .You can have minimum 512Mb storage to 16GB. Moreover we let you to choose your favorite OS between Android and Windows.
Wide-viewing angle
Unlike a conventional display surface where it’s not to view the monitor at 178 degrees (side to side), User LCD video walls let you have this wide viewing angle keeping display brightness and contrast.
Connectivity
User interactive table is capable of connecting to other devices through Bluetooth and local WiFi network such as Bluetooth speakers.
Operating system (OS)
Our kiosks come with customized operating system will put your hands to choose your preferred OS. In this way, you will supply pleasant user experience for your customers based on their interest.
3D Noise Reduction
3D Noise Reduction (3D-DNR) is an approach of supporting noise in image. Actually this technology is utilized to remove unwanted noises from a signal to change it to a greater and pure degree. As a result you will never have any image distortion using User interactive touchscreen table
IPS commercial grade panel
IPS (In-plane switching) is a screen technology for LCD monitors. Firstly this was designed to solve the unignorable limitaions such as strong viewing angle dependence and low-quality color reproduction.
Lifetime technical support
This is also a crucial support department in User Company. Counting over twenty technician and engineers to help service any issues that might occur during the life cycle of your displays. Our current final failure rate is below 1.7%. We strive on a daily basis to keep lowering these statistics. Our weekly meetings between our after sales and QC teams truly help us achieve these hard set goals.
3 Years warranty
User Corporation has 3 years of warranty for all the products in there will be a technical issue in your display systems of your touchscreen table.
Product features
Product model | US-AD***** | ||||
Screen
parameters |
Size | 32” | Audio system | Horn | 2×5W(8Ω) |
Back type | Backlight integration | Sound mode | standard | ||
Display Proportion | 16:9 | Output Interface | PC output interface | RJ45 1、USB 2 | |
Physical resolution | 1920X1080 | L/R Audio output | 1 RCA X2 | ||
Color depth | 16.7M | Power consumption | Input voltage | C 100~240v 50/60HZ | |
Viewing angle | R/L/U/D 89/89/89/89 | Standby power / rated power | ≤3W/≤180W | ||
Brightness | 450 cd/㎡ | Cabinet | Material | SPCC | |
Contrast | 5000:1 | Exterior color | Black (default) gold silver | ||
Response time | 5ms | External conditions | Working temperature / humidity | 0℃~50℃/20%~80% | |
Service time | 60000 hours | Storage temperature / humidity | -10℃~60℃/5–95% |
Screen size Power
Screen size Power
|
18.5 inch | 21.5 inch | 27 inch | 32 inch | 43 inch | 49 inch | 55 inch | 65 inch | 75 inch | 86 inch | 98 inch |
Standalone version | 25W | 30W | 50W | 70W | 85W | 100W | 115W | 180W | 240W | 380W | 550W |
Android system | 25W | 30W | 50W | 70W | 85W | 100W | 115W | 180W | 240W | 380W | 550W |
Low power consumption
One machine series |
38W | 40W | 50W | 90W | 100W | 120W | 135W | 180W | 260W | 300W | 500W |
Desktop machine series | 95W | 98W | 110W | 150W | 170W | 190W | 220W | 250W | 330W | 390W | 600W |
Touch Panel Options
Touch Panel Options | Infrared Touch (IR Touch ) | Capacitive Touch | Nano Capacitive Touch |
Touch Points | 10 points touch | 10 points touch | 10 points touch |
Material | IR Tube | G+G | G+F |
Response Time | <8ms | <3ms | <5ms |
Touch Times | 50 million times | 50 million times | 50 million times |
Transmittance | 0.92 | 0.95 | 0.85 |
Version
Version | CPU | Internal Storage | Out Storage | Interface | System supporting |
Display Version | E9-B11/ E9-BNC/E6J-AV | No storage | USB /HDD/SSD | HDMI/VGA/DVI/USB | Android /Windows/Linux OS |
Standalone Version | Mstar V56 | No storage
( 8G/16G available) |
support SD card and USB Flash | HDMI/USB/SD | Only Standalone OS |
Configuration
Configuration | CPU | Chip architecture | Processor | Maximum resolution support | System Version | Storage |
Basic level | A20 | Cortex-A7 | Dual-Core | 1080P | Android 4.1 | 512Mb +8G |
A33 | CortexTM-A7 | Quad-core | 1080P | Android 4.4 | 512Mb/1Gb +8G | |
A64 | Cortex-A53 | Quad-core | 1080P | Android 5.1 | 512Mb/1Gb +8G | |
Middle level | RK3128 | Cortex-A7 | Quad-Core | 1080P | Android 6.0 | 512Mb/1Gb +8G |
RK3368 | Coretex-A53 | Octa-Core | 2K/4K | Android 6.0 | 1Gb/2Gb +8G | |
RK3188 | Cortex A9 | Quad-Core | 2K | Android 6.0 | 1Gb/2Gb +8G | |
Top level | RK3288 | Cortex-A17 | Quad-Core | 4K | Android 6.0 | 2Gb +8G |
RK3399 | Cortex-A72 | Dual-core +Quad-core | 4K | Android 7.1 | 4Gb +16G | |
Amlogic T960X | Cortex-A53 | Quad-Core | 4K | Android 7.1 | 2Gb+8G |
Operating System
Operating System | CPU | System Version | Graphics | RAM | Storage |
Windows OS | Core-i3 | Win 7/ Win 10 | 3.7HZ/3.9HZ | 4G (8G available ) | 120G SSD/500G HDD |
Core-i5 | Win 7/ Win 10 | 3.2HZ/3.4HZ | 4G (8G available ) | 120G SSD/500G HDD | |
Core-i7 | Win 7/ Win 10 | 3.4HZ/3.6HZ | 4G (8G available ) | 120G SSD/500G HDD |
