Wall mount LCD digital signage

Infrared & Capacitive Touch

Wide-View Angle

Windows Ready

multiple-users

Centralized Terminal

Android Ready

24/7 Usage

Landscape & Portrait

IPS panel

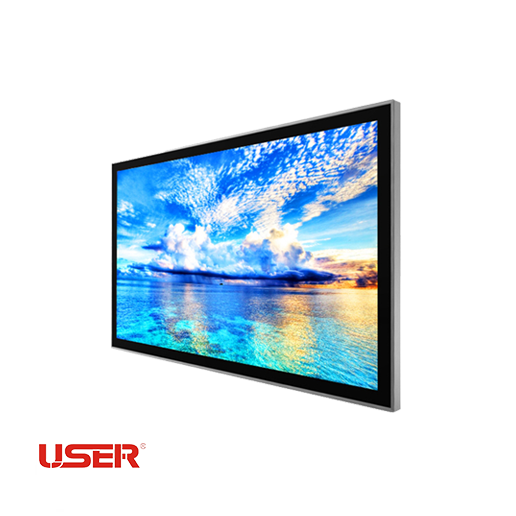

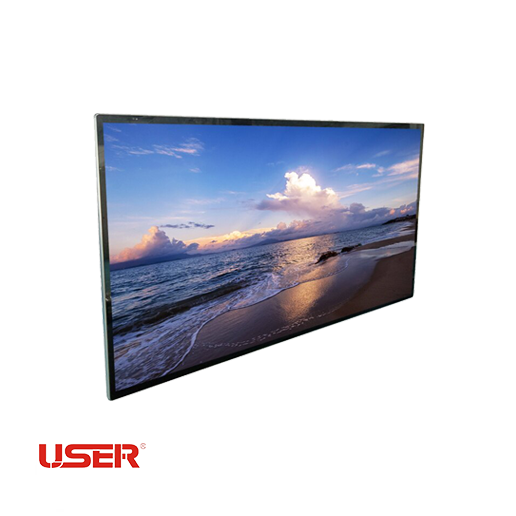

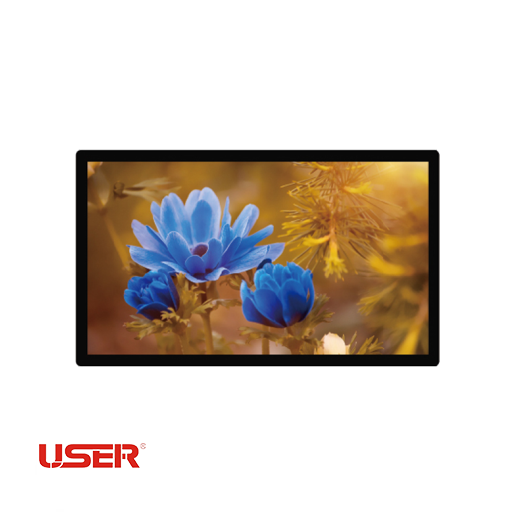

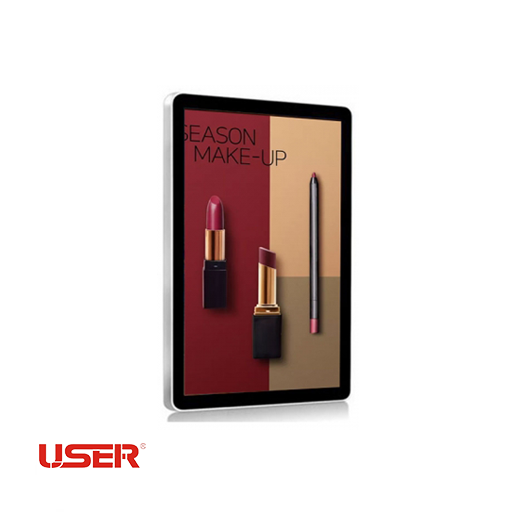

Wall mount LCD digital signage

Download Wall Mount LCD Digital Signage Catalogue

What is User Wall Mount LCD Digital Signage?

Wall mount LCD digital signages are eye-catching ultra-wide screen series of Digital Signage that users and audiences can easily interact with it via high-resolution graphical content. Wall mount LCD advertising players are commonly used to transfer and announce visual information of products, services and much more information to the public. Generally, digital signage player, a computer embedded within the wall mounted digital signage is responsible to feed images, videos or interactive content on player screen. Display system utilized in this digital advertising player uses LCD screen to illustrate visual graphical content. Choosing appropriately customized hardware depends on how complex and high-definition your advertising content is. Besides hardware like other electronic devices, the digital ads player requires content management software to design, deploy and schedule digital content.

Application of wall mount LCD digital player is a lot to count, it can be used in any public arena for various purposes. These devices can be found anywhere. Mostly wall mount LCD/LED digital signage focus on restaurant, supermarket and transportation area, which mainly use for shows the price information for the goods on the shelf and bus/train routine and time schedule on metro or bus station. This type of advertising signage can either double side or single side.

Floor standing

If you don’t have enough space in your location or a wall to mount your signage on, surely this is the best possible solution for your condition. Moreover some of our floor stands have magazine holder. In this way you can purchase two in one. Floor standing is know as A Frame or Poster and so on that are available only in big screen sizes from 56″ to 68″

Wall mount

Wall mount digital signage is another type of our various products among digital signage devices that has attracted customer’s attention. The interesting thing is that it is available in modern original black frame and classic wooden frame.

Stretched bar

This innovative signage which looks fantasy is quite suitable for your wide images and videos. You might worry about picture resolution in different angles, User ensures you about it, because all of our products use wide-view angle technology.

Shop window

Shop-window digital player is specifically designed for spacious shopping centers where advertisement should be visible and bright enough even for audiences who are standing meters away.

floor standing
Wall mount
Stretched Bar
Shop window

Wall Mount LCD Digital Signage Usages

Education by USER interactive kiosk

Education

at schools, colleges and universities

Catalogue

at exhibitions and company offices

Check-in by USER interactive kiosk

Check-in

At airports, hotels and hospitals

Order by USER interactive kiosk

Order

Items in store or restaurant meals

Schedule by USER interactive kiosk

Schedule

At schools, colleges and universities

Purchase Tickets by USER interactive kiosk

Purchase Tickets

for public transportation, cinema and etc.

To know more about this product, you should definitely check “Top benefits of wall mounted digital signage” guide. In addition, explore through some of the features of “Wall Mount LCD Digital Signage”:

High-quality Screen

User provides wall mount LCD digital signage with a high-quality screen which utilizes explosion-proof glass. To explore the details, the screen is anti-violent, scratch-resistant, dust-proof and waterproof that helps you maintain in better. Besides, Industrial high-performance screen ensures high image clarity, high brightness and stability of use. It can also be upgrade from 1080P to 2K or 4K . Normally LCD digital advertising players are designed in different levels of being temperature tolerance and water and wind for indoor and outdoor environments.

Stretched bar LCD display

Tempered Glass

A safety glass processed by controlled thermal or chemical treatments is attached to all display screen. The tempered glass is pretty increases the strength of the screen against minor and major scratches, hits and breaking damages.

Operating system (OS):

User interactive LCD digital signage series come with customized operating system that will put your hands to choose your preferred OS among Windows, Android, Linux or even standalone OS . In this way, you will supply pleasant user experience for your customers based on their interest.

Screen Size

You should always choose an appropriate touch screen size considering your environment, device application, user experience. Luckily, USER Display Solution has designed digital players in various model and sizes to provide your needs. Among all sizes the most common ones are 32, 43, 49 and 55 inches.

Wall Mount Screen Size

Machine Shell

The shell is made of high-strength steel, which is ultra-thin, beautiful and strong, and has excellent protection performance. The material and design of shell is one the significant which provides possibility of using in both indoor and outdoor conditions.

One-key Operation

wall mount LCD digital signage can be operated in two methods:

  • Remote control through wireless connection
  • USB Playback

One-key Operation

Multiple Configuration

You can easily choose among basic level, middle level and top level. Different levels are various in processor from Dual-Core to Dual-Core. Its OS version is available Android 4.1 to Android 7.1 .Moreover we let you to choose your favorite OS between Android, Windows, Linux or standalone OS.

Multiple Inputs

Powerful interface supporting a wide range of audio and video inputs like SD card and USB Flash and outputs such as HDMI/VGA/DVI/USB. The USER manufacturer has considered fast dynamic picture without any delay or even frame loss to enhance the UX (user experience).

3 Years Warranty

User Company has 3 years of warranty for all the products in there will be a technical issue in your display systems. Usersdt Warranty covers the defects resulting from defective parts, materials or manufacturing. The device is considered defective if it fails to perform the functions as indicated in the operation manuals, technical specifications or any other similar documents supplied with the equipment, and the failure is due to internal device characteristics.

24/7 Usage

As one the important features of wall mount LCD digital signage is to be able to work continuously for long hours and days. User Company digital signage devices are built for 24/7 commercial use of uninterrupted work with the stable performance.

Stretched bar display

Wide-Viewing Angle

Unlike a conventional display surface which it’s not possible to view the monitor at 178 degrees (side to side). User wall mount smart LCD digital signage lets you have this wide viewing angle keeping display brightness and contrast.

wide viewing angle

Eco-Friendly Power Timer

The Eco-friendly power timer lets you assign hourly, daily or weekly on and off times for screen. By this feature, the power is consumed as it is needed. Moreover it is be really effective in energy consumption.

IPS Commercial Grade Panel

IPS (In-plane switching) is a screen technology for LED monitors. This was designed to solve the unignorable limitations such as strong viewing angle dependence and low-quality color reproduction.

Backplane Cooling

As most of advertising machines are supposed to work constantly for long hours, the temperature of screen and processing unit can unbelievably increases. While the installed backplane cooling system assures to keep the machine working in a proper temperature and provide you the best quality presentation.

Advertising Machine Backplane Cooling

Storage

Due to increasing size of high-quality media files, User supplies it with high-capacity via internal and external storage. In addition to internal storage varying from 512MB to 2GB, an external storage could be inserted via USB, HDD and SSD. In this way, you will never have any shortage.

Centralized Terminal Management

A cloud-based system that provides real-time control and insights of wall mount smart interactive signage, enabling operators to remotely manage content, display schedule and other functions.

Lifetime Technical Support

This is also a crucial support department in User Company. Counting over twenty technician and engineers to help service any issues that might occur during the life cycle of your displays. Our current final failure rate is below 1.7%. We strive on a daily basis to keep lowering these statistics. Our weekly meetings between our after sales and QC teams truly help us achieve these hard set goals.

Intelligent Split Screen

Intelligent Split Screen is an attractive item in your wall mounted advertising machine control software. It helps to take most benefit of your device and use each of its screens to display various visual content.

Smart Split Screen

Automatic Switch Machine

If you are a busy person who forgets to turn off your wall mount LCD digital display at night, this feature can save you from paying high-price electricity bill. Automatic switch machine will get an administrator schedule and act exactly based on your set time.

User wall Mount LCD Digital Signage

Product model US-AD*****

Screen

parameters

Size 43”-55” Audio system Horn 2×5W(8Ω)
Back type Backlight integration Sound mode standard
Display Proportion 16:9 Output Interface PC output interface RJ45 1、USB  2
Physical resolution 1920X1080 L/R Audio output 1 RCA X2
Color depth 16.7M Power consumption Input voltage C 100~240v 50/60HZ
Viewing angle R/L/U/D 89/89/89/89 Standby power / rated power ≤3W/≤180W
Brightness 450 cd/㎡ Cabinet Material SPCC
Contrast 5000:1 Exterior color Black (default) gold silver
Response time 5ms External conditions Working temperature / humidity 0℃~50℃/20%~80%
Service time 60000 hours Storage temperature / humidity -10℃~60℃/5–95%

Screen size Power



Screen size Power



18.5 inch 21.5 inch 27 inch 32 inch 43 inch 49 inch 55 inch 65 inch 75 inch 86 inch 98 inch
Standalone version 25W 30W 50W 70W 85W 100W 115W 180W 240W 380W 550W
Android system 25W 30W 50W 70W 85W 100W 115W 180W 240W 380W 550W

Low power consumption

One machine series

38W 40W 50W 90W 100W 120W 135W 180W 260W 300W 500W
Desktop machine series 95W 98W 110W 150W 170W 190W 220W 250W 330W 390W 600W

Touch Panel
Touch Panel Options Infrared Touch (IR Touch ) Capacitive Touch Nano Capacitive Touch
Touch Points 10 points touch 10 points touch 10 points touch
Material IR Tube G+G G+F
Response Time <8ms <3ms <5ms
Touch Times 50 million times 50 million times 50 million times
Transmittance 0.92 0.95 0.85

Control Processing Unit (CPU)
Version CPU Internal Storage Out Storage Interface System supporting
Display Version E9-B11/ E9-BNC/E6J-AV No storage USB /HDD/SSD HDMI/VGA/DVI/USB Android /Windows/Linux OS
Standalone Version Mstar V56

No storage

( 8G/16G available)

support SD card and USB Flash HDMI/USB/SD Only Standalone OS

Configuration
Configuration CPU Chip architecture Processor Maximum resolution support System Version Storage
Basic level A20 Cortex-A7 Dual-Core 1080P Android 4.1 512Mb +8G
A33 CortexTM-A7 Quad-core 1080P Android 4.4 512Mb/1Gb +8G
A64 Cortex-A53 Quad-core 1080P Android 5.1 512Mb/1Gb +8G
Middle level RK3128 Cortex-A7 Quad-Core 1080P Android 6.0 512Mb/1Gb +8G
RK3368 Coretex-A53 Octa-Core 2K/4K Android 6.0 1Gb/2Gb +8G
RK3188 Cortex A9 Quad-Core 2K Android 6.0 1Gb/2Gb +8G
Top level RK3288 Cortex-A17 Quad-Core 4K Android 6.0 2Gb +8G
RK3399 Cortex-A72 Dual-core +Quad-core 4K Android 7.1 4Gb +16G
Amlogic T960X Cortex-A53 Quad-Core 4K Android 7.1 2Gb+8G

Operating System (OS)
Operating System CPU System Version Graphics RAM Storage
Windows OS Core-i3 Win 7/ Win 10 3.7HZ/3.9HZ 4G (8G available ) 120G SSD/500G HDD
Core-i5 Win 7/ Win 10 3.2HZ/3.4HZ 4G (8G available ) 120G SSD/500G HDD
Core-i7 Win 7/ Win 10 3.4HZ/3.6HZ 4G (8G available ) 120G SSD/500G HDD

Q: What is digital signage?

A: Digital signage is an electronic sign used to transfer and announce visual information to customers in the store or commuters on street.

Q: What does digital signage mean?

A: In fact, digital signage is an electronic type of old signage which allows you illustrate images, videos or any multimedia content to advertise your business.

Q: Where can digital signage be used?

A: Various types of digital signage is used daily outdoor and indoor such as transportation systems, hospitals, museums, hotels, restaurants and even offices for advertising, informing and announcing purposes.

Q: What are digital signage usages?

A: Digital signage mainly presents your product information or new release, sales and services. While it is quite common to use it in crowded public places to attract people and create a pleasant visual experience by entertaining, educating, and communicating with them.

Q: How much does a digital signage cost?

A: Actually, its price could be pretty various depending on its screen size and technology. All in all, a typical custom steel sign costs about $20 to $30 per square foot while aluminum and plastic design usually costs between 10-20 dollars per square foot. The least expensive signs are made from urethane and generally cost about $5 to $10 per square foot.

Q: What types are digital signage?

A: 4 different types: floor standing, digital poster, wall mounting and outdoor digital signage

Q: How does a digital signage work?

A: Digital signage’s content is powered by a media player or system-on-a-chip which pushes content to a display screen. Users can then manage the content with a content management system, either on-site or within the cloud to change up content on the fly.

Q: What is digital signage software?

A: digital signage software lets you manage and control your digital signage efficiently. In other words, this tool helps you to schedule content, media playlist and also organizing them.

Q: What are the best digital signage software?

A: • NoviSign
• Yodeck
• OnSign TV
• Telemetry TV
• Viewneo

Q: How do you use digital signage on TV?

A: First you need to make sure your CMS and hardware are able to take an external source’s digital or analog input directly to the signage. So if your digital signage has an HDMI input, it makes it quite easy to use it on TV just by plugging HDMI cable. It’s clear that in this way, all the content management and will be on TV side.

Q: How do you set up a digital signage?

A: Just take to steps below
1. Purchase a High-Definition Screen.
2. Purchase Media Player/Software.
3. Verify High-Speed Hardwired Internet Connection.
4. Locate Power Connections.
5. Pull It All Together.

Q: Can you use digital signage as a TV?

A: Yes. First you need to make sure your CMS and hardware are able to take an external source’s digital or analog input directly to the signage. So if your digital signage has an HDMI input, it makes it quite easy to use it on TV just by plugging HDMI cable. It’s clear that in this way, all the content management and will be on TV side.

Q: What is XIBO digital signage?

A: Xibo Digital Signage is a low-cost, high performance solution to launch your signage needs into new heights! Digital Signage content is now so much more than just fixed images and text and with Xibo you can transform your designs simply and quickly by integrating third party content to give a customized experience.

Q: What are the advantages of digital signage?

A: • Attracting crowd attention
• Presenting you sales, new products or services very entertainingly
• Cost-effective
• Dynamic advertising content
• Boosts impulse purchase sales
• Increases In-store digital/Social media presence

Q: Why is signage so important?

A: Because it really helps you to entertainingly present you sales, new products or services in order to attract crowd attention on the street in a cost- effective way and finally Increases In-store digital/Social media presence

Q: Why should I buy a digital signage?

A: Because it really helps you to entertainingly present you sales, new products or services in order to attract crowd attention on the street in a cost- effective way and finally  Increases In-store digital/Social media presence.

Q: What is the difference between sign and signage?

A: Based on the definitions from Merriam-Webster (Signage; Sign), signage refers to the conveyance of the message—icons, words, arrows—whereas sign refers to the display itself. In certain contexts, signage and sign can be interchangeable, but they have their own distinct meanings.

Q: What is operating system (OS) of digital signage?

A: Digital signage comes with customized operating system that will put your hands to choose your preferred OS among Windows, Android, Linux or even standalone OS. In this way, you will supply pleasant user experience for your customers based on their interest.

Q: Is digital signage available in Android?

A: Yes. Depending on device configuration its Android version can be 4.1, 4.4, 5.1, 6.0 or 7.1

Q: Is digital signage available in Windows?

A: Yes, according to your need you can have Win 7, 8 or 10 installed.

Q: Is digital signage available in Linux?

A: Yes.

Q: Can digital signage have standalone OS?

A: Digital signage comes with customized operating system that will put your hands to choose your preferred OS among Windows, Android, Linux or even standalone OS. In this way, you will supply pleasant user experience for your customers based on their interest.

Q: What Type of Businesses Can Use Digital Signage?

A: Digital signage is appropriate for all most all kinds of businesses including markets, private companies, public utility companies who need to attract more view of crowd and serve them more.

Q: What are the elements of Digital Signage?

A: The four main elements are display, software, media player and content.

Q: Is digital signage available in Landscape and Portrait?

A: Yes, most types of digital signage can be used in landscape or portrait mode.

Q: What type of digital signage is more suitable?

A: According to the type of your business, any kind of floor standing, digital poster, wall mounting and outdoor digital signage could be helpful for you.

Q: Does digital signage also support external storage?

A: Yes, an external storage could be inserted via USB, HDD and SSD. In this way, you will never have any shortage.

Q: How much is memory of digital signage?

A: Due to increasing size of high-quality media files, User supplies it with high-capacity via internal and external storage. In addition to internal storage varying from 512MB to 2GB, an external storage could be inserted via USB, HDD and SSD. In this way, you will never have any shortage.

Q: What are digital signage inputs?

A: A powerful interface supporting a wide range of audio and video inputs like SD card and USB Flash and outputs such as HDMI/VGA/DVI/USB. The User manufacturer has considered fast dynamic picture without any delay or even frame loss to enhance the UX (user experience).

Q: What is material of digital signage body?

A: The covering shell of digital signage is made up of high-strength steel, which is ultra-thin, beautiful and strong, and has excellent protection performance.

Q: How long non-stop a digital signage can be on?

A: Actually digital signage is designed in a way to be able to work for non-stop long hours.

Q: Does a digital signage have Wide-Viewing Angle technology?

A: Yes, Unlike a conventional display screens that it’s not possible it may be difficult to view the monitor at 178 degrees, all of USERSDT digital signage with Wide Viewing Angle allows you to view it in color and brightness up to 178 degrees.

Q: Can digital signage be scheduled to display?

A: Yes, one of the best features of top digital signage software is creating a playlist to send scheduled content to one or more displays.

Q: Is there any technical support of digital signage?

A: Yes, we in USERSDT provide you free technical support for each of our products.

Q: How effective is digital signage?

A: Interestingly, digital signage has a 47.7% effectiveness on brand awareness. Digital displays capture 400% more views than static displays. Indeed, 75% of travelers recall seeing a digital billboard within the past month
